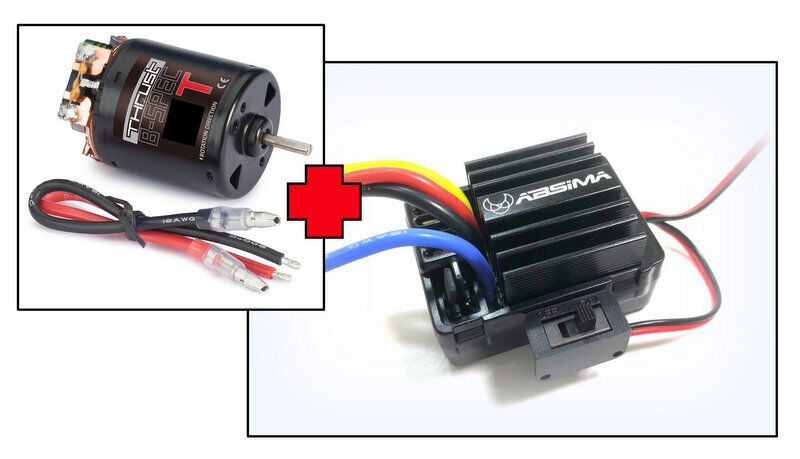

Absima Electric Motor "Thrust B-Spec" 17T + 1/10 Brushed ESC 40A

MORE POWER, MORE FEATURES, MORE FUN !

We proudly present our new programmable "ALL-IN-ONE" BRUSHED SPEED CONTROLLER which can be used for 1:10 RC Crawlers and also Race Cars. The basic setting for the vehicle and battery type is done via "jumpers" on the speed controller. A programming card is also available, which can be used for even more settings.

HIGHLIGHTS

• One ESC suitable for all vehicle types (crawler, off-road, on-road, boat)
• Programmable via jumper and separately available programming card (Item 2110061)
• 2S LiPo operation recommended
• Motor ready soldered - plug-n-play

Programmable features (via programming card)

• Initial Start Force: 5%* / 13% / 21% / 29%
• Low V cut-off: 3.1V* / 3.4V / Off
• Crawler Setup - Initial Drag Brake: 100%* / 90% / 80% / 70%
• Standard Setup - Max Brake Force: 50%* / 100% / 75% / 25%
• Max Reverse Force: 50%* / 75% / 100%
• Start Mode (Punch): Medium* / Strong / Soft

Standard Features ESC

• Waterproof and dustproof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion).
• Specially designed for BRUSHED RC Cars and Crawlers for excellent acceleration and sensitive driving feel.
• Low internal resistance and excellent heat dissipation.
• Multiple protection functions such as low voltage cutoff for LiPo and NiMH batteries, ESC overheat protection and signal loss protection.
• Easy to program with pocket-sized jumper and programming card (sold separately - item 2110061)

What's In The Box

• 1:10 Brushed V2 Speed Controller
• Thrust B-Spec Brushed Motor
• Adhesive Tape
• Manual

Specifications ESC

• Continuous/short-term load: 80A/320A
• Resistance: 0.0014ohm
• Suitable motor types: Brushed standard motors
• Battery recommendation: 2S LiPo / 6 cells NiMH
• BEC 6.0V/5A
• Motor limit 2S LiPo/5-6 cells NiMH: ≥ 11T or <25.000RPM
• Measure: 41.5*35*29.5mm
• Plug system: T-plug
• Weight: 63.4g

Specifications B-Spec Motor

• Turns: 17T
• Speed: 28.800RPM
• Output power: 155W
• Operating voltage: 7.2-7.4V
• Technical Size: 540
• Motor shaft: Length 12,3mm; Ø 3,18mm
• Motor size: Length 53,2mm; Ø 35,7mm
• Ball bearings: 2
• Weight: 165g
