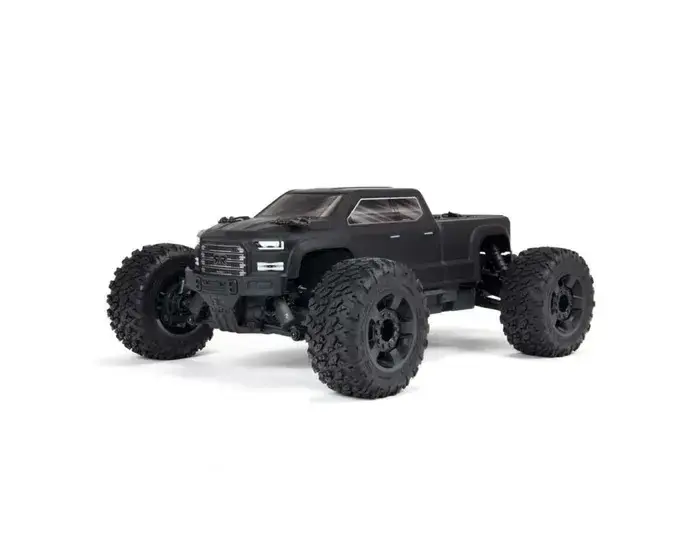

Arrma Big Rock V3 4X4 3S BLX Monster Truck RTR

The ARRMA® BIG ROCK™ CREW CAB 4X4 3S BLX offers scale realism, dirt-chucking action and 50+ mph speed potential! It’s also updated with a Spektrum™ SLT3™ radio, Firma™ brushless motor, tougher chassis, wider stance, stronger steering servo and more.

A great step-up from brushed bashing, the 1/10 scale ARRMA® BIG ROCK™ CREW CAB 4X4 3S BLX ready-to-run monster truck delivers a thrilling combination of ARRMA® toughness, street truck style and 50+ mph speed capability. Built on the powerful 4X4 BLX platform, its precision aluminium, tough steel and composite materials come together for an easy-to-maintain, super-durable vehicle design that’s now been upgraded to further increase the monster truck’s impressive performance and durability.

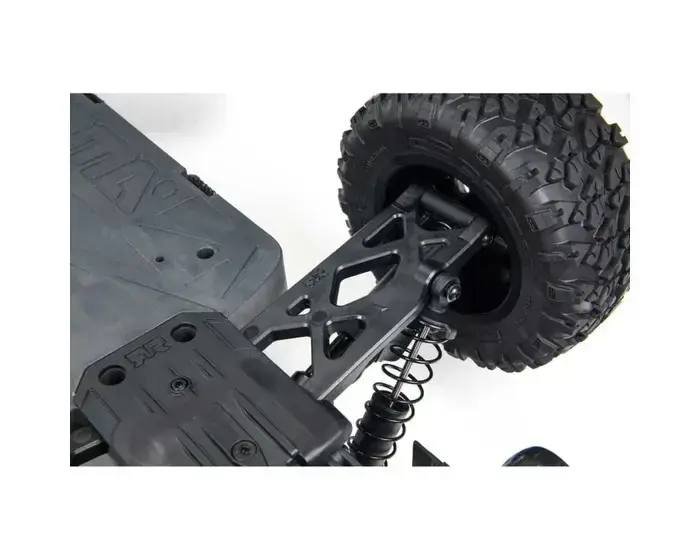

The BIG ROCK™ 4X4 3S BLX is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability. New features that enhance its unstoppable performance include a stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; longer suspension arms for a 1.10 inch increase in width; and rubber-shielded bearings throughout.

It also now includes a Spektrum™ SLT3™ transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free bashing and has a foam wheel for precise fingertip control, plus an improved handgrip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

ARRMA® now powers the BIG ROCK™ 4X4 3S BLX with a brushless system featuring its BLX100 ESC and the Spektrum™ Firma™ 3200Kv brushless motor. The combination provides incredible torque, acceleration and speed. The transmission and chassis are ruggedly engineered to take full advantage of the electronics’ power.

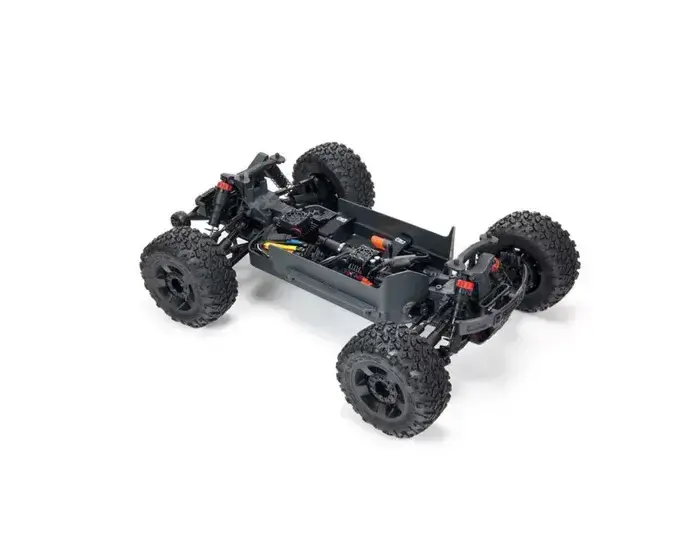

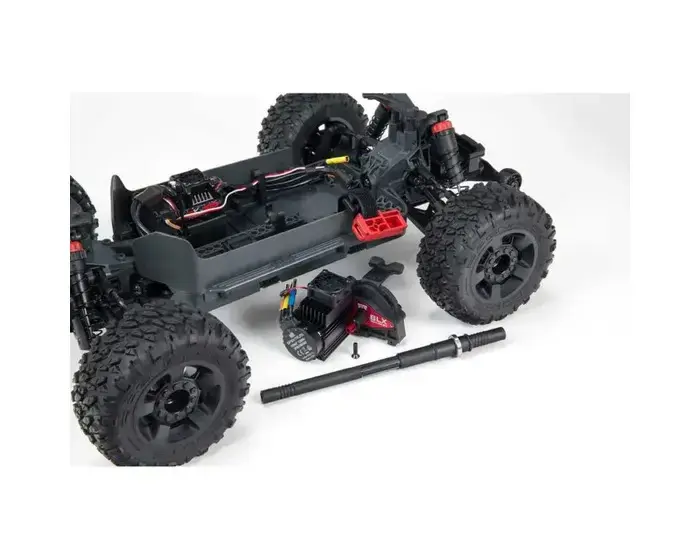

It has the ingenious modular design perfected by ARRMA® engineers for easy component access and maintenance. The power module, with improved dirt management, consists of the motor with ARRMA® heatsink and cooling fan, plus motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The gear ratio can be finely tuned as the power module now uses a sliding motor mesh design.

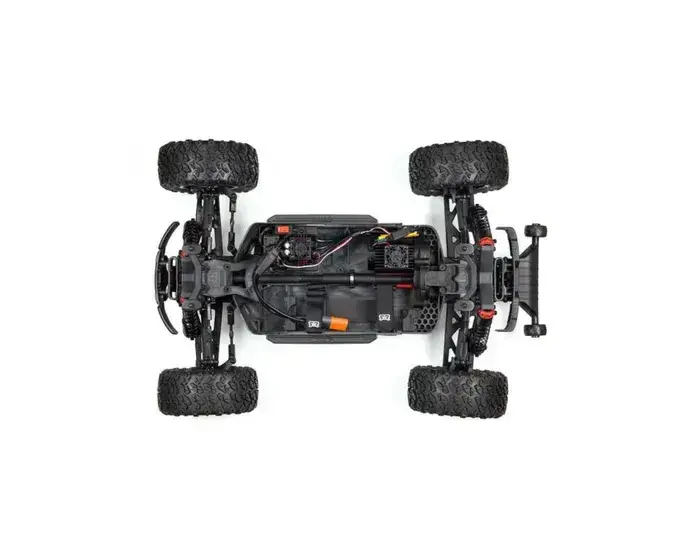

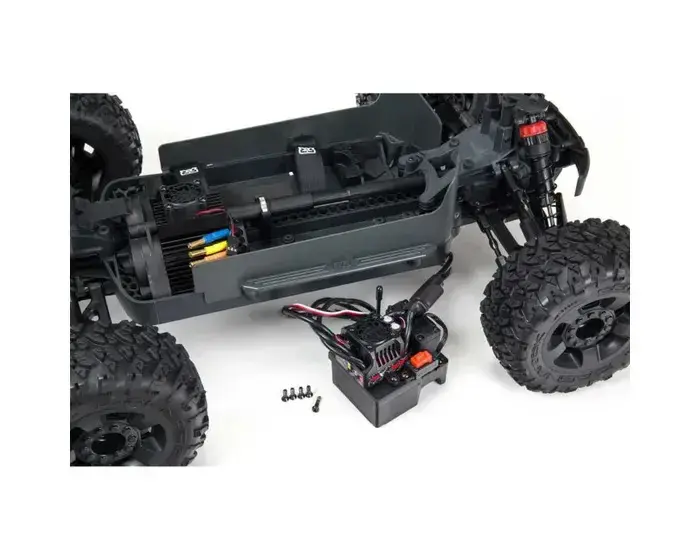

A two-piece moulding screwed to the truck’s chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray. The SLR300 receiver mounts inside the receiver box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.

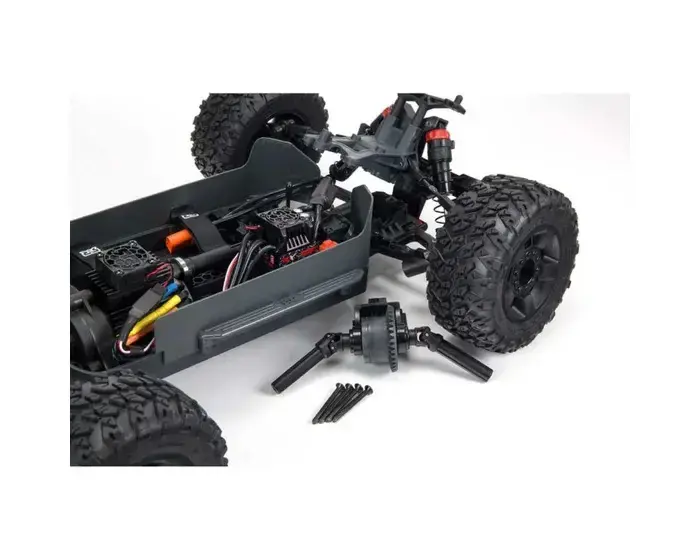

The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access. The BIG ROCK™ 4X4 3S BLX RTR comes brushless-ready with 37T 1.35mod diffs with silicone O-rings. The large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.

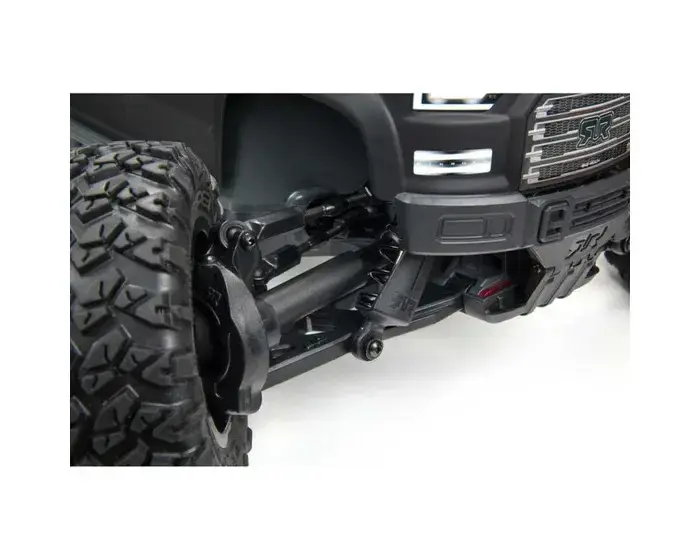

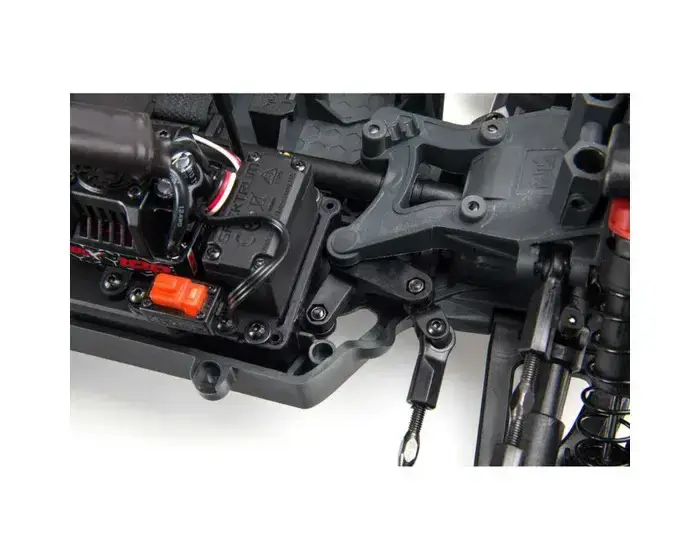

Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can’t be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The BIG ROCK™ 4X4 3S BLX RTR includes the waterproof Spektrum™ SPMS651 metal-geared digital servo for 15% more torque than the previous version’s ADS-7M servo.

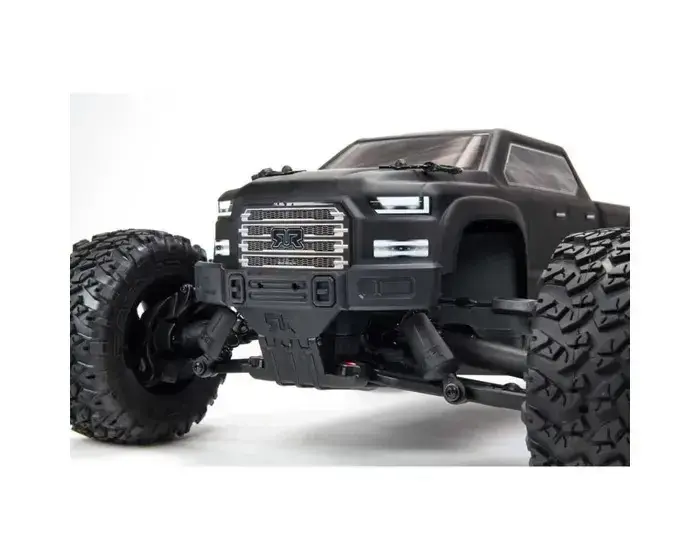

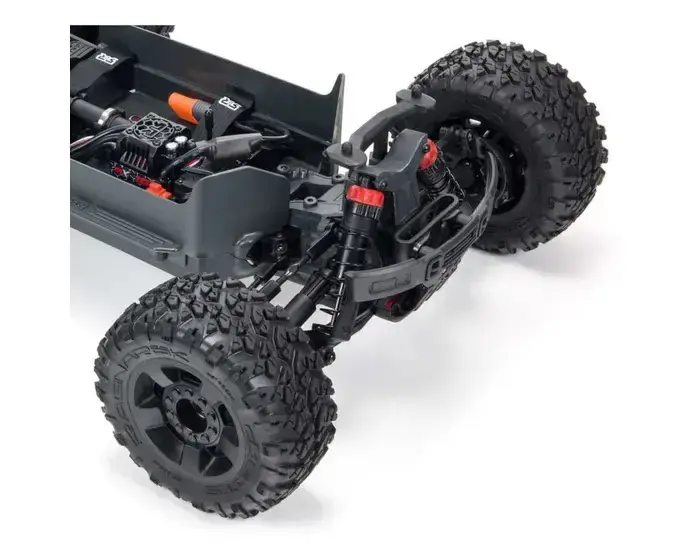

The self-bleeding, oil-filled shocks, now with silicone O-rings, use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a moulded-in spring perch for extra toughness. Extended height dirt defenders and a close-fitting body limit the amount of dirt and debris that can get into the chassis tub. Front and rear bumpers offer defence against impacts.

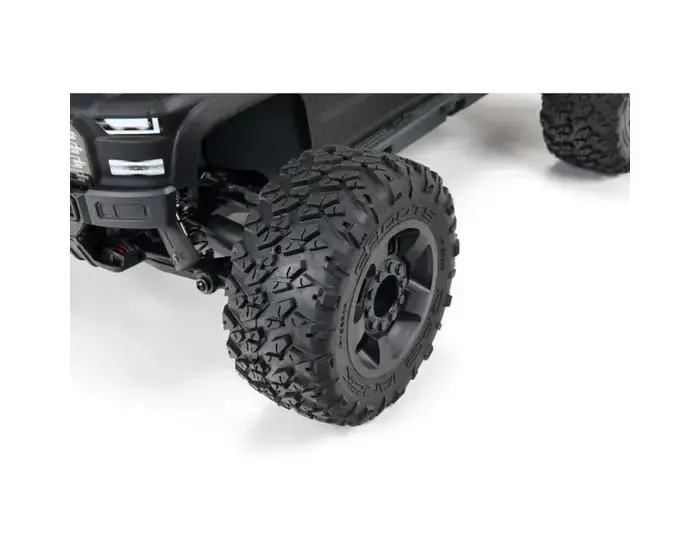

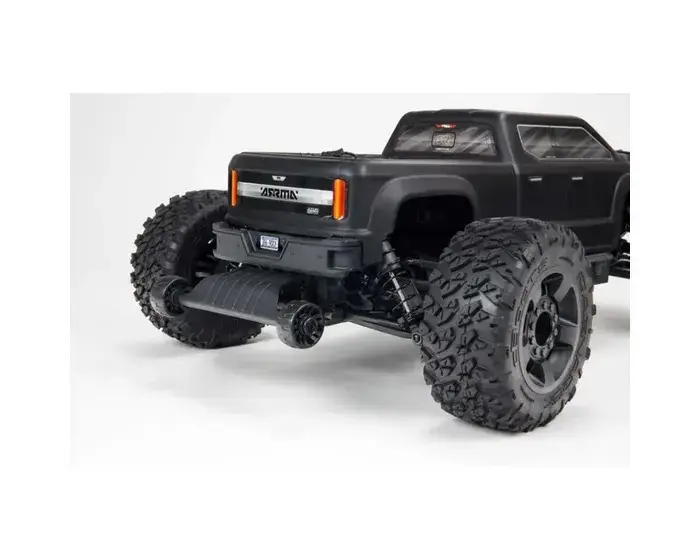

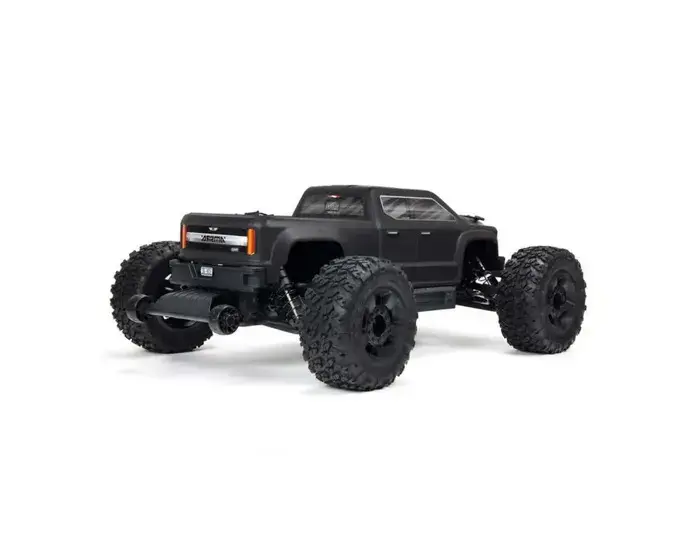

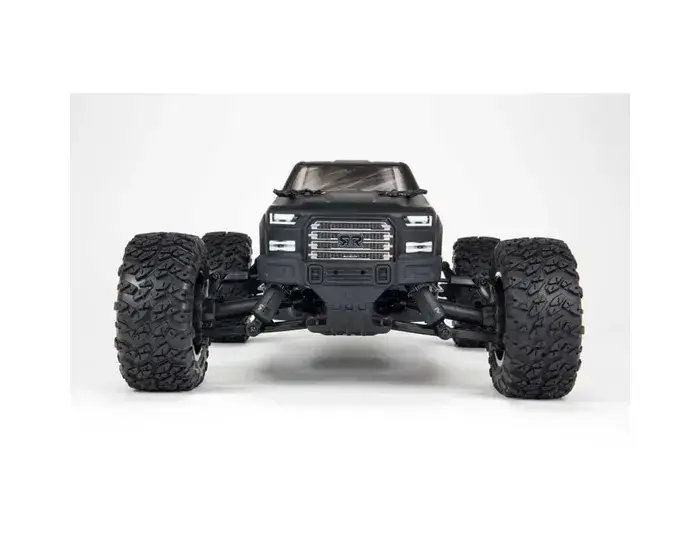

Accented by matte black front and rear bumpers and wheels, the BIG ROCK™ 4X4 3S BLX truck’s long, scale Crew Cab body marks the epitome of street style. With the included dBoots® RAGNAROK™ MT tires, you’ll take it on the run over dirt tracks, trails and even muddy courses. An adjustable wheelie bar comes as standard, letting you enjoy a little stunt fun along the way.



What You Need (Not Included)

  • 2S LiPo or 3S Hardcase LiPo Battery
  • Compatible Charger
  • LiPo Safe Charging Bag
  • (4) AA Batteries



Features

NEW for the ARRMA® BIG ROCK™ 4X4 3S BLX RTR:

  • Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver
    • Fast response SLT™ protocol
    • Foam wheel
    • Improved grip and trigger feel
    • Improved wheel and trigger force
    • 2-way thumb switch third channel
    • 50% and 75% Throttle mode (for beginners)
    • Tactic® SLT™ receiver compatible
  • Spektrum™ SPMS651 Metal-Geared Digital Servo
    • 101 oz-in (7.27 kg-cm) @ 6V
    • 15% more torque than the previous ADS-7M servo for improved steering feel
    • Waterproof*
  • Spektrum™ Firma™ 3660 3200Kv brushless motor with Safe D pinion and ARRMA® heatsink and cooling fan
  • Stronger chassis and retained hinge pin plates
  • Steering with more clearance for stones
  • Castellated slipper pad and sliding gear mesh
  • 1.1 inch wider stance for better handling and bashing
  • Plastic locknut for slipper
  • 23T Spline servo saver
  • 37T 1.35Mod diffs with silicone O-rings
  • Power Module with sliding gear mesh and improved dirt management
  • Rubber shielded bearings throughout
  • Oil-filled shocks with silicone O-rings
  • Wider arms front and rear
  • Body with matte black finish
  • Front and rear bumpers with matte black finish
  • Tough black multi-spoke wheels with matte black finish
  • Vented multi-terrain dBoots® RAGNAROK™ tyres

Proven popular features — Designed to be Fast, Designed to be Tough:

  • BLX100 2S/3S waterproof* ESC
  • IC5™ connectors (EC5™) compatible
  • Signature easy-access modular design
  • Easy-access power module
  • Easy-access electronics module
  • Easy-access diff module removal front and rear
  • Double wishbone suspension front and rear
  • Metal-geared differentials
  • Extended height dirt defenders
  • Adjustable ride height
  • Adjustable body mounts
  • Adjustable turnbuckles
  • High-speed center driveshaft support
  • Wheelie bar
  • 2-year limited warranty (see website for details)
  • 50+ MPH (80+ km/h) speed achievable in optimum driving conditions on 3S LiPo

* Note: For details on waterproof standards, refer to the instruction manual



Product Specification

  • Completion Level: Ready-to-Run
  • Scale: 1/10
  • Length: 20.24 in (514mm)
  • Height: 7.91 in (201mm)
  • Width: 14.02 in (356mm)
  • Weight: 6.25 lb (2.84kg)
  • Ground Clearance: 2.17 in (55mm)
  • Wheelbase: 12.87 in (327mm)
  • Front Track: 14.02 in (356mm)
  • Rear Track: 14.02 in (356mm)
  • Chassis: Moulded Composite
  • Suspension: Independent
  • Shock Type: Oil-Filled, Coil-Over Springs
  • Drivetrain: 4WD
  • Differential: 2 Gear Diffs
  • Wheel Type: MT (2.8" 14mm hex)
  • Wheel Diameter: 2.81 in (71.5mm)
  • Tyre Tread: dBoots® Ragnarok™ MT
  • Tyre Diameter: 5.12 in (130mm)
  • Motor Type: Non-Sensored Brushless
  • Motor Size: 3660
  • Pinion: 15T
  • Spur Gear: 57T
  • Gear Pitch: 0.8MOD
  • Internal Gear Ratio: 2.85
  • Final Drive Ratio: 10.83
  • Speed Control Included: Yes
  • Radio: Spektrum™ SLT3™ 3-channel
  • Servos Included: Yes
  • Body: Painted, decalled and trimmed
  • Ball Bearings: Ball bearings throughout
  • Experience Level: Intermediate
  • Recommended Environment: All-Terrain
  • Is Assembly Required: No
