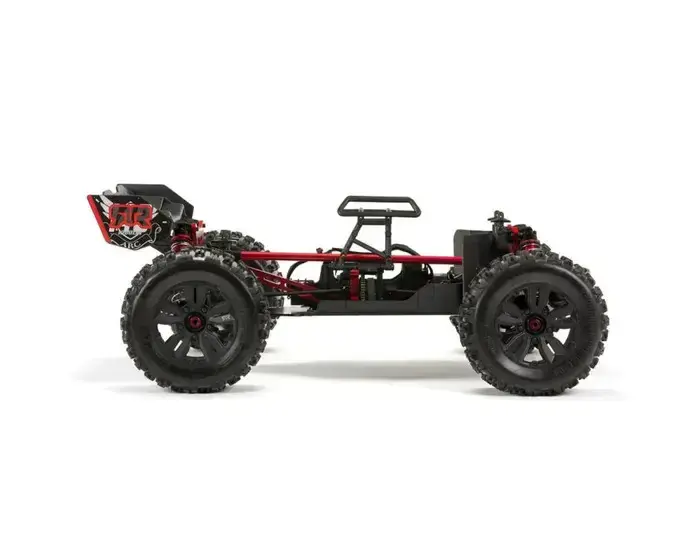

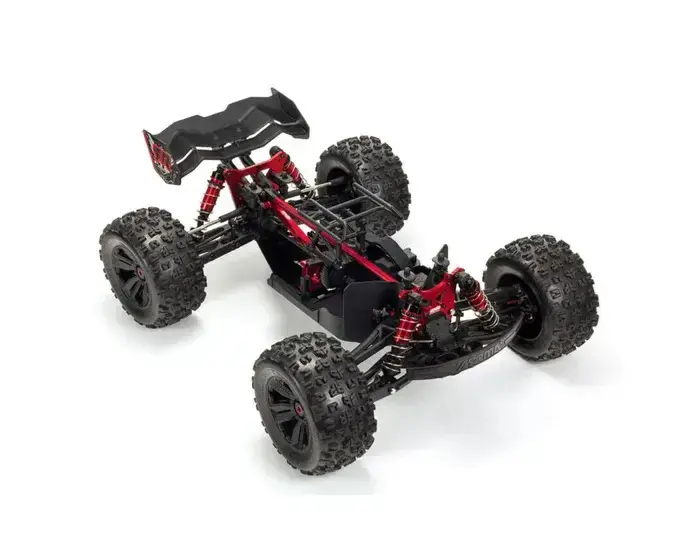

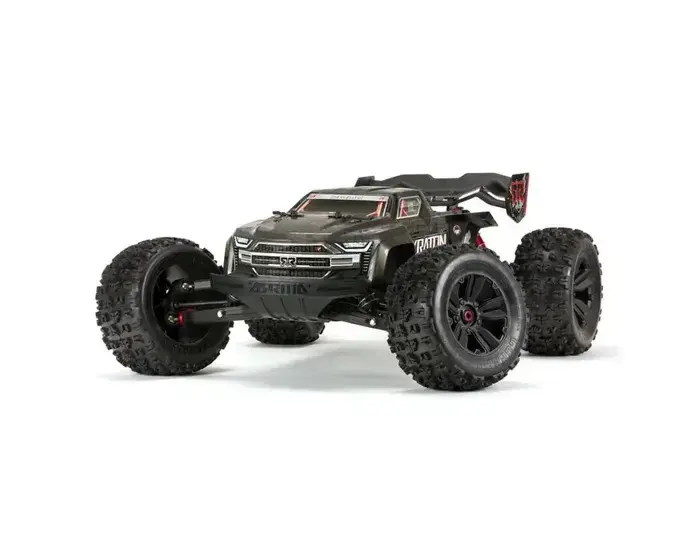

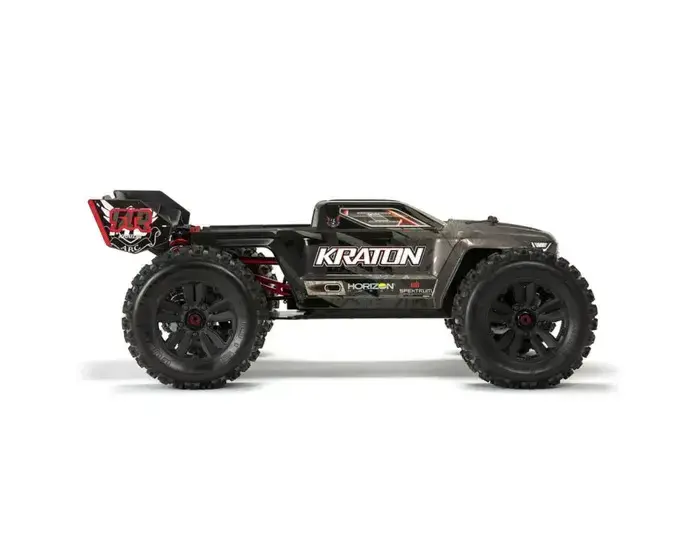

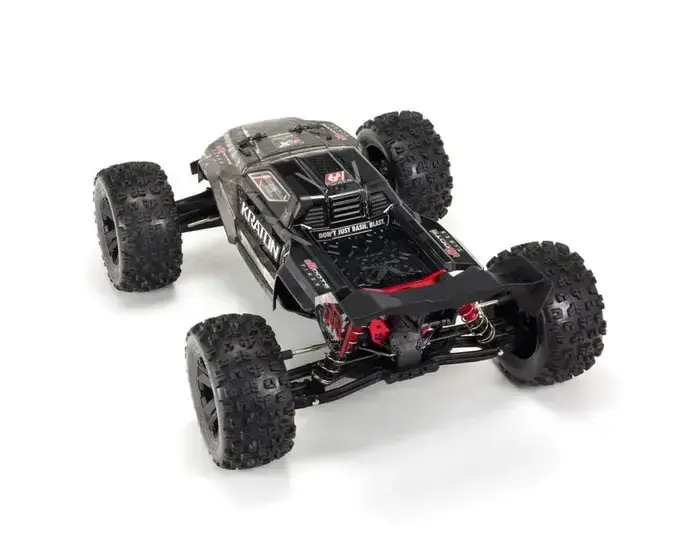

Arrma Kraton eXtreme Bash 1/8 Monster Truck, Rolling Chassis - ARA106053



Product Information

EXB-hardened components throughout its fully assembled chassis give the 1/8 scale ARRMA KRATON EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength. Install your electronics and the finished EXB body - and bash without boundaries.

The ARRMA® KRATON™ Extreme Bash Roller Speed Monster Truck adds extra toughness everywhere it counts, making this 1/8 scale chassis the perfect platform for high-speed bashing over brutal terrain. It's fully assembled and ready to accept your choice of powerful electronics. Top off the KRATON™ Extreme Bash Roller Speed Monster Truck with the included, exclusive EXB matte and gloss finish body — and you're ready to bash without boundaries.

"Designed Fast, Designed Tough" may be an understatement when describing the KRATON® Extreme Bash Roller Speed Monster Truck. Made of strong anodized 7075 T6 aluminum, the laser-etched chassis plate gains further rigidity from the use of front and rear aluminum chassis braces. Strong composite chassis side pods and a center body support and brace provide more rugged resilience.

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An Extreme Bash toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodized aluminum front and rear shock towers.

The KRATON™ Extreme Bash Roller Speed Monster Truck's list of EXB components also includes the following — and more — to give this big machine uncompromising muscle:

Its aggressive dBoots® Copperhead™ 2 tires arrive mounted on multi-spoke wheels with durable hubs to deliver all-terrain traction — assisted by a high downforce wing that adds an aggressive edge to the look of the exclusive EXB matte and gloss effect finished truck body.

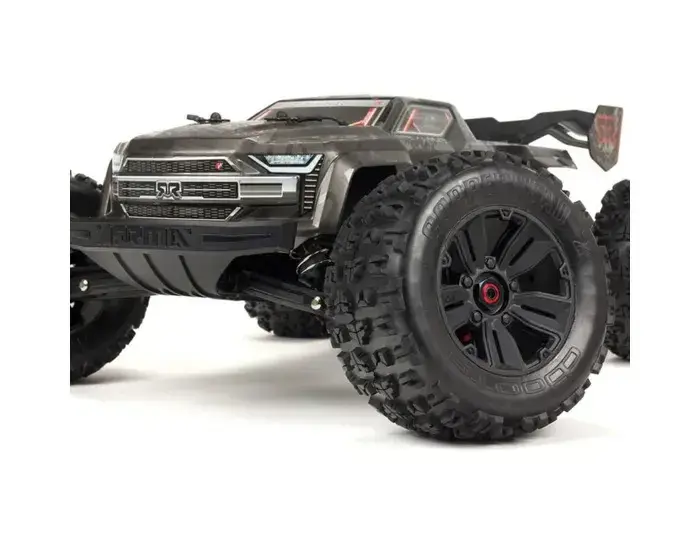

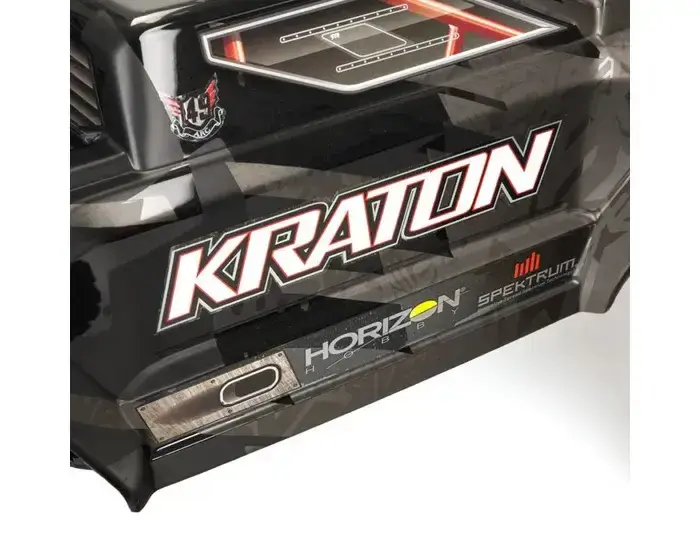

EXCLUSIVE EXB MATTE & GLOSS EFFECT BODY

EXCLUSIVE EXB MATTE & GLOSS EFFECT BODY

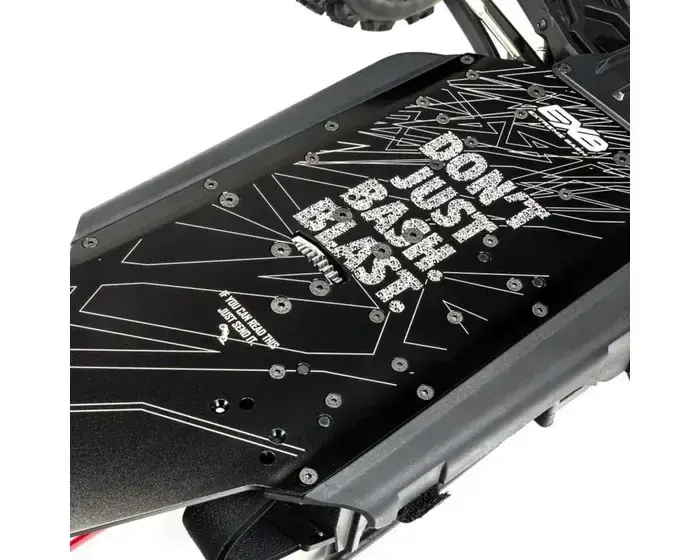

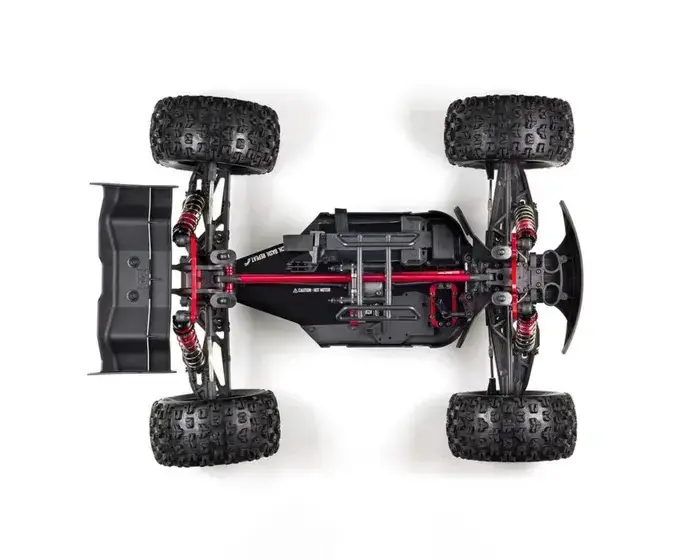

ETCHED TO PERFECTION

ETCHED TO PERFECTION



EXB FOR EXTREME BASH TOUGHNESS

EXB FOR EXTREME BASH TOUGHNESS



REDESIGNED ALL-METAL INTERNALS THROUGHOUT

REDESIGNED ALL-METAL INTERNALS THROUGHOUT FOR HANDLING GREATER POWER

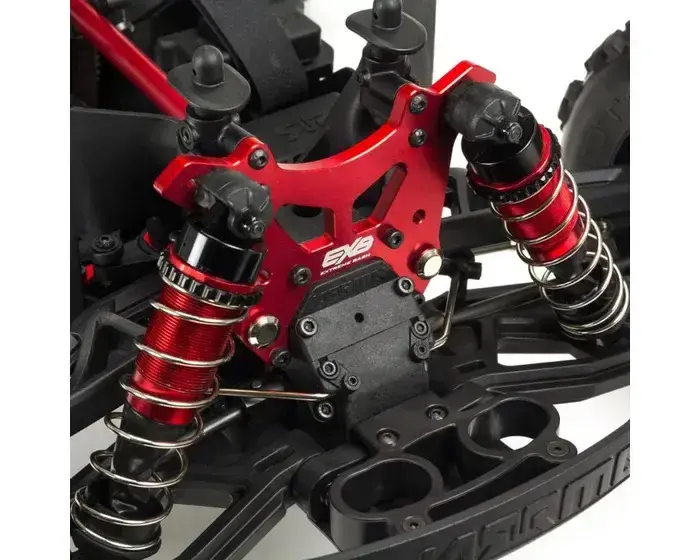

EXB ALUMINUM FRONT SHOCK TOWER

EXB ALUMINUM FRONT SHOCK TOWER

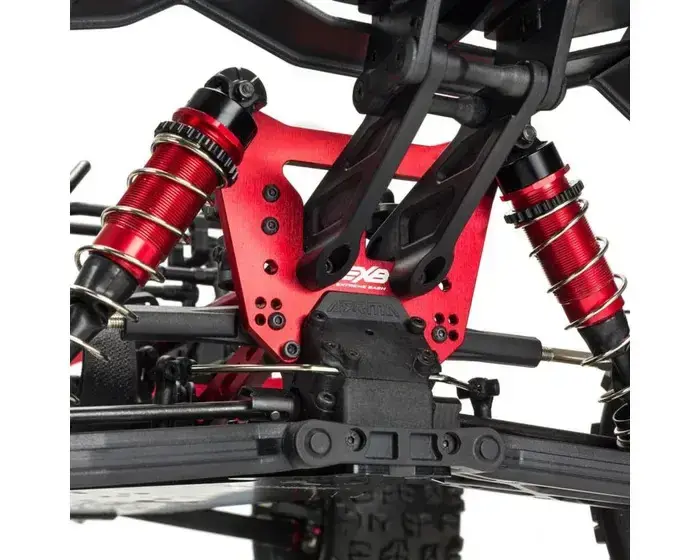

EXB ALUMINUM REAR SHOCK TOWER

EXB ALUMINUM REAR SHOCK TOWER



EXB PLATED LIMITED SLIP FRONT DIFFERENTIAL

EXB PLATED LIMITED SLIP DIFFERENTIAL



EXB PLATED LIMITED SLIP CENTER DIFFERENTIAL

RED ANODIZED ALUMINUM FRONT UPPER HANGER



WIDER TOOTH PROFILE = STRONGER GEARS

WIDER TOOTH PROFILE = STRONGER GEARS



SAFE D FIRST

SAFE D FIRST - PLASTIC LOCKING SLEEVE, NO RED THREAD LOCK REQUIRED



RUBBER SHIELDED BEARINGS THROUGHOUT

RUBBER SHIELDED BEARINGS THROUGHOUT



EXB HEAVY-DUTY STEEL TURNBUCKLES

EXB HEAVY-DUTY STEEL TURNBUCKLES

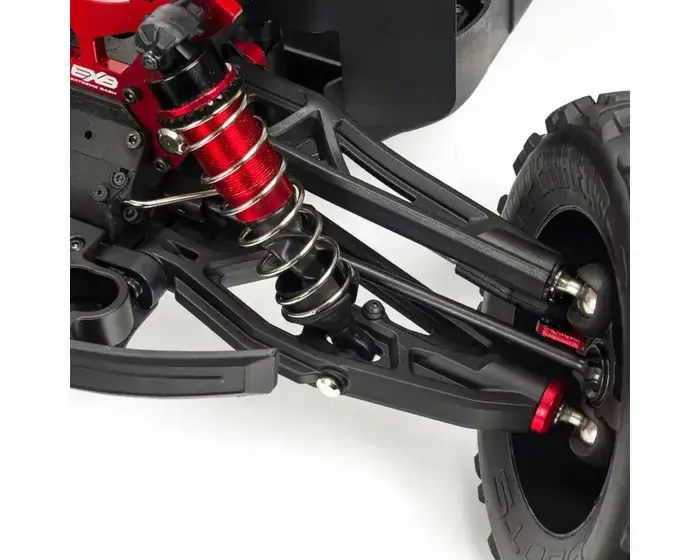

HEAVY-DUTY FRONT ARMS

HEAVY-DUTY FRONT ARMS WITH ALUMINUM STRENGTHENING CAPS

HEAVY-DUTY REAR ARMS

HEAVY-DUTY REAR ARMS



EXB HEAVY-DUTY FRONT UPPER STEEL HINGE PINS

EXB HEAVY-DUTY FRONT UPPER STEEL HINGE PINS

EXB HEAVY-DUTY FRONT & REAR SHOCK PINS

EXB HEAVY-DUTY FRONT & REAR SHOCK PINS

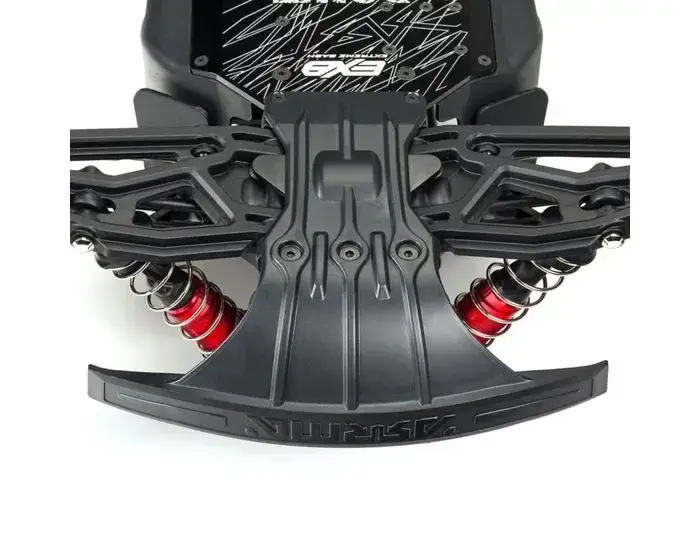

EXB FRONT BUMPER

EXB FRONT BUMPER

EXB FRONT BUMPER WITH BUILT IN SKID PROTECTION AND CRASH ABSORBING DESIGN

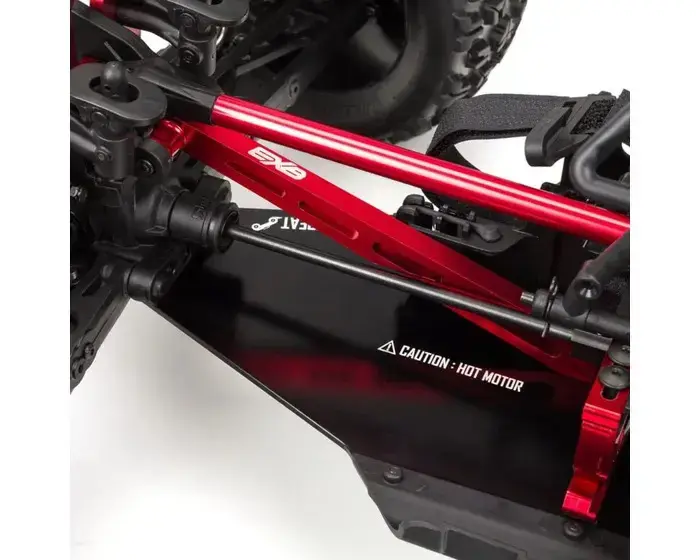

EXB FRONT ALUMINUM CHASSIS BRACE

EXB FRONT ALUMINUM CHASSIS BRACE



EXB FRONT ALUMINUM CHASSIS BRACE

EXB REAR ALUMINUM CHASSIS BRACE

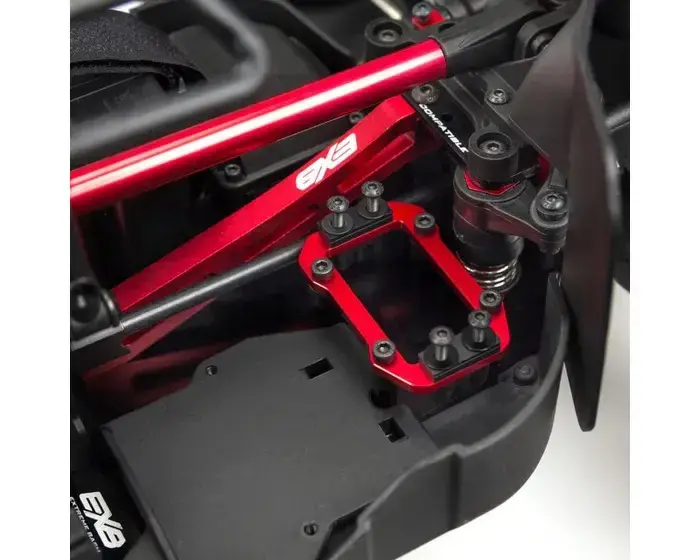

EXB ANODIZED ALUMINUM SERVO MOUNT

EXB ANODIZED ALUMINUM SERVO MOUNT

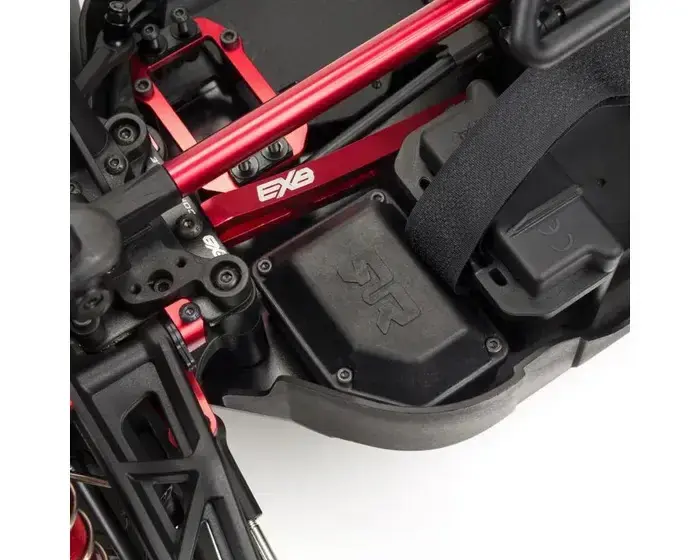

LARGE VOLUME WATERPROOF RECEIVER BOX

LARGE VOLUME WATERPROOF RECEIVER BOX



What's In The Box

  • (1) ARRMA® KRATON™ 1/8 Scale Extreme Bash Roller Speed Monster Truck 4WD
  • (1) Product Manual



What You Need

  • Transmitter and Receiver
  • Steering Servo
  • Electronic Speed Controller
  • Motor
  • Batteries (1 or 2)



Features

  • Designed Fast, Designed Tough
  • EXB (Extreme Bash) components for extreme durability
  • 7075 T6 Aluminum laser-etched chassis plate
  • Aluminium front and rear chassis braces
  • Centre body support and brace for maximum durability
  • Strong composite chassis side pods
  • Aluminium front upper hanger, top plate, and rear suspension mount
  • Heavy-duty front and rear arms with aluminium strengthening cap
  • Heavy-duty steel turnbuckles
  • Heavy-duty front upper steel hinge pins
  • Heavy-duty drivetrain
  • Durable steel driveshafts
  • All-metal diff outdrives and gearbox internals
  • Plated limited-slip differentials
  • Safe-D input gears
  • Oil-filled adjustable shocks
  • 7075 T6 Anodized aluminium front and rear shock towers
  • Red-anodized aluminium servo mount
  • Large volume waterproof receiver box
  • Black matte and gloss effect body
  • Front bumper
  • High downforce wing
  • Multi-terrain DBoots® Copperhead™ 2 tires on multi-split spoke wheels
  • Durable wheel hubs
  • 2-year warranty (see website support for details)



Product Specifications

  • Ball Bearings: Yes, full set
  • Max Battery Dimensions: 5.4 x 1.8 x 1.4 in (138.5 x 46 x 35mm)
  • Tire Tread: dBoots COPPERHEAD2
  • Final Drive Ratio: 17.92
  • Length: 23.39 in (594mm)
  • Radio: Sold separately
  • Charger: Sold separately
  • Drivetrain: 2WD
  • Suspension: Independent
  • Height: 7.68 in (195mm)
  • Speed Control: Sold separately
  • Gear Pitch: 1.0 Module
  • Width: 18.15 in (461mm)
  • Scale: 1/8
  • Wheelbase: 14.84 in (377mm)
  • Brakes: Integral with ESC
  • Water-Resistant: Yes
  • Motor Type: Brushless, Brushless, sold separately
  • Wheel Type: Monster truck
  • Body: Painted, decaled and trimmed
  • Chassis: CNC 7075-T6 Aluminum plate, 0.12" (3mm) thick
  • Pinion: 12T
  • Spur Gear: 50T
  • Bushing Material: Metal
  • Shock Type: Adjustable, oil-filled, coil-over springs
  • Vehicle Type: Monster Truck, Monster truck
  • Weight: 9.35 lb (4.25kg)
  • Wheel Hex Size: 17mm
  • Approximate Assembly Time: 1-3 Hours
  • Differential: Three oil-filled metal gear
  • Batteries: One 3S at least 5000mAh recommended
  • Motor Size: 4074, sold separately
  • Tire Diameter: 6.65 in (169mm)
  • Servos: Sold separately
