Hobao 1/10 Hyper TT 2.0 Pro Electric Truck ARR Clear Body

The Hobao 1/10 Hyper TT 2.0 Pro Electric Truck is engineered for high-performance racing, featuring all-metal parts and a robust design. This ARR (Almost Ready to Run) model provides the perfect balance of durability and agility, making it an excellent choice for both competitive racers and hobbyists.



Key Features

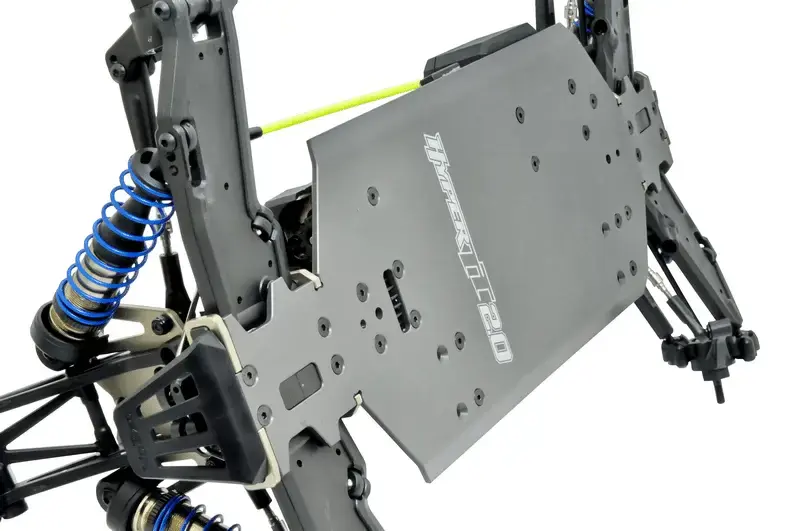

Chassis:

  • Material: Lightweight, hard anodized CNC aluminum.
  • Thickness: 3mm thick for superior strength and rigidity.
  • Center Top Brace: Enhances structural integrity and stability.
  • Wire Pass-Through: Facilitates organized wiring for a clean build.

Drive System:

  • Central Drive: Single Ø4mm hardened steel center driveshaft, with an optional aluminum driveshaft (#OP1-0072) for reduced weight.
  • Front Drive: CVA axles made of Ø3.2mm hardened steel.
  • Rear Drive: Dogbone axles constructed from Ø3.2mm hardened steel.

Differentials:

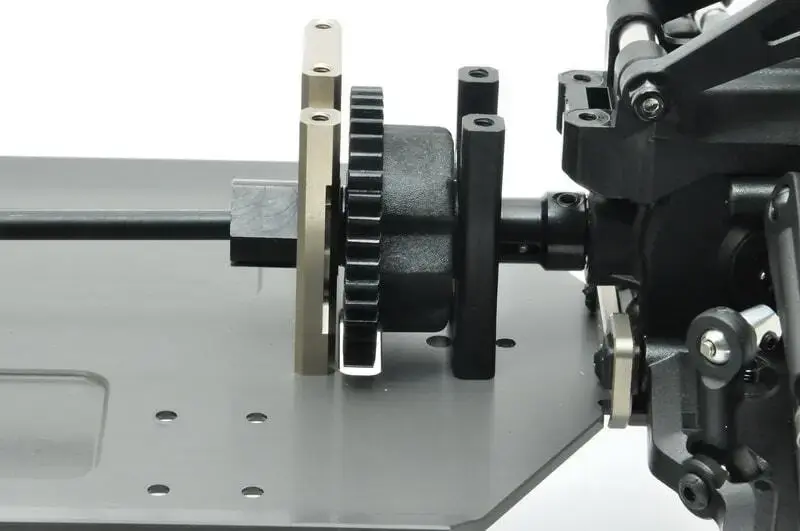

  • Connection: Center differential is directly linked to the rear differential for improved torque distribution.
  • Construction: Metal bevel gear with an anti-leakage differential housing.
  • Gear Setup:
    • Pinion Gear: 10T (MOD 1)
    • Ring Gear: 39T (MOD 1)
    • Center Spur Gear: 40T (MOD 1).
  • Differential Oils:
    • Front differential filled with #5K silicone oil.
    • Center differential filled with #5K silicone oil.
    • Rear differential filled with #3K silicone oil.

Shocks:

  • Fluid: Filled with #600 silicone oil for optimal damping.
  • Design: Aluminum 12mm big body with a 3.5mm shaft, aluminum adjustable ring, and shock cap protector.
  • Springs:
    • Front: 0.86kg/cm, L=50mm, Blue
    • Rear: 0.64kg/cm, L=65mm, Blue
    • Optional Front Spring (#OP1-0073): 1kg/cm, L=50mm, Grey
    • Optional Rear Spring (#OP1-0074): 0.73kg/cm, L=65mm, Grey
  • Shock Tower: 3mm CNC aluminum; optional carbon fiber shock towers available for front (#OP1-0070) and rear (#OP1-0071).

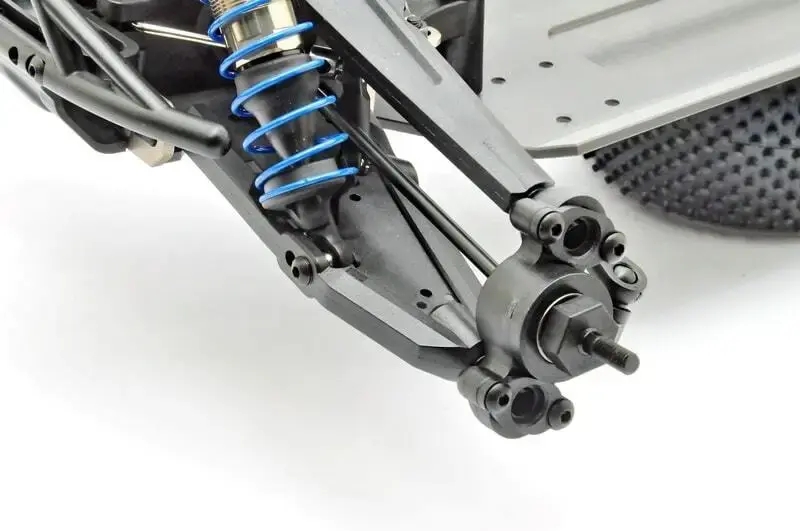

Suspension:

  • Type: Front PBS (Parallel Beam Suspension) for improved handling.
  • Upgrades: Optional aluminum steering block set (#OP1-0077) and aluminum rear hub (#OP1-0079).
  • Arms: Strengthened composite upper and lower arms compatible with older versions of the TT10. Optional carbon fiber arm inserts (#OP1-0068 and #OP1-0069) available.
  • Anti-Roll Bars: Included for enhanced cornering stability.
  • Arm Holders: CNC aluminum front and rear arm holders with pill inserts (#11367) for adjustable toe and anti-squat angles.

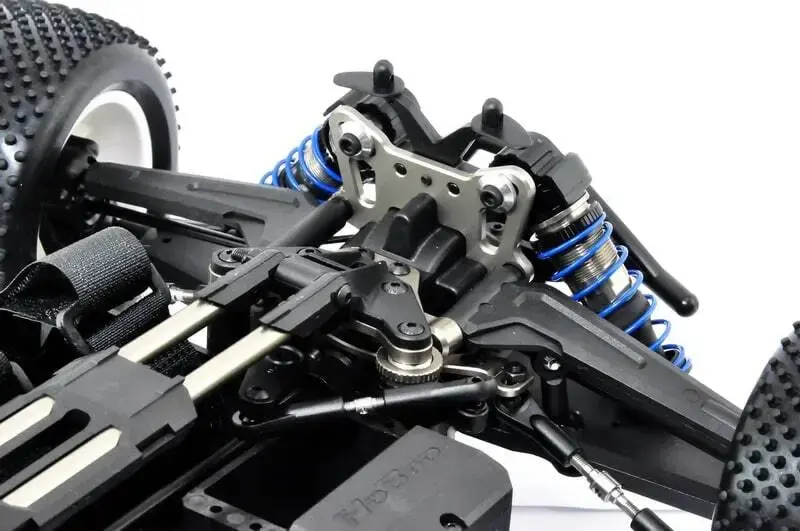

Steering:

  • System: New steering crank set with a CNC aluminum rack and hard spring for precise control.
  • Servo Saver: Equipped with ball bearings for enhanced durability.

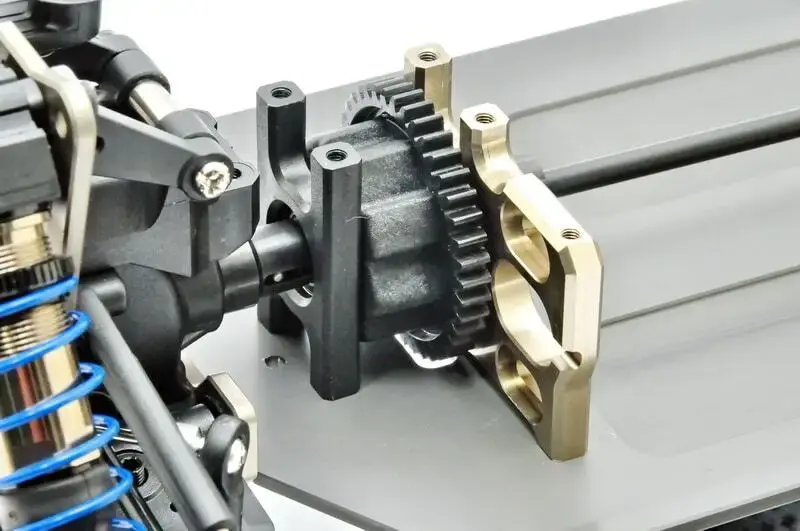

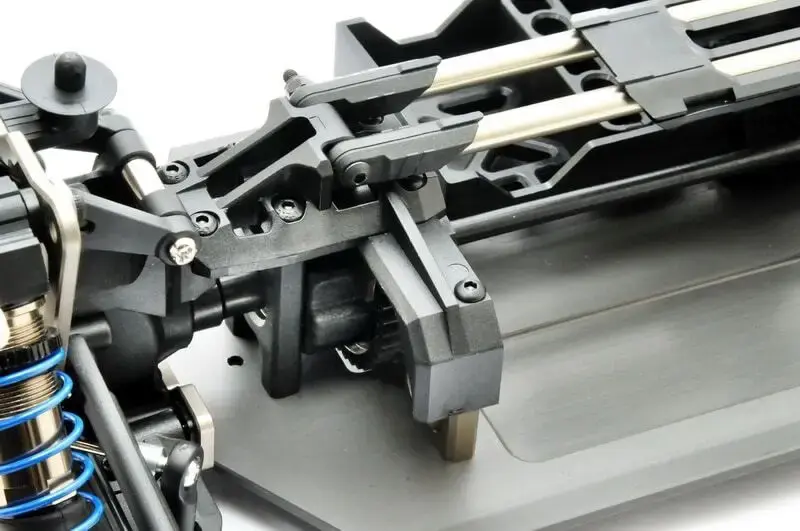

Battery Tray & Motor Mount:

  • Motor Gear: 13T (MOD 1).
  • Spur Gear: 40T (MOD 1).
  • Motor Mount: CNC aluminum laydown design, fitting motors below 38mm. Includes spur gear cover for protection.

Tires & Wheels:

  • Tires: Pin-spoke tires designed for superior traction.
  • Wheel Hex Hub:
    • Front: 12mm plastic wheel hex hubs.
    • Rear: 12mm plastic wheel hex hubs (+1mm).
    • Optional front (#OP1-0075) and rear (#OP1-0076) wheel hex hubs available.
  • Wheels: 5-spoke wheels in white, with optional yellow wheels (#11106Y) or pre-mounted tires on yellow wheels (#11105Y).

Additional Features:

  • Ball Bearings: A full set is included for smooth operation.

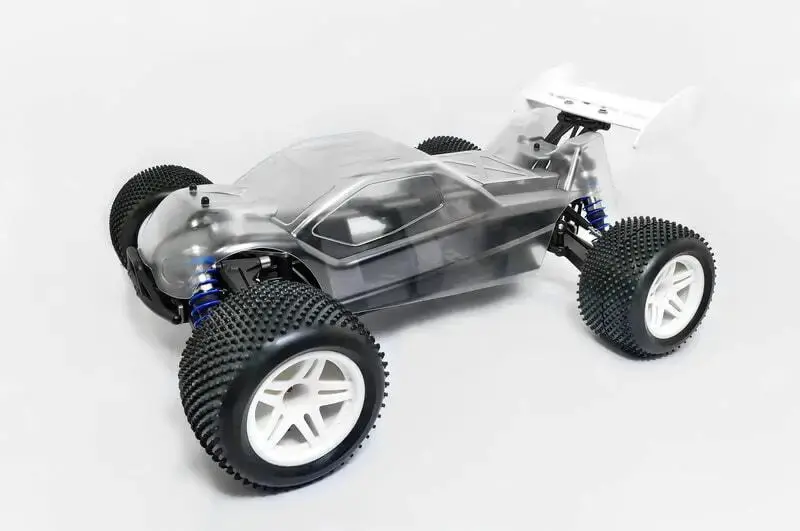

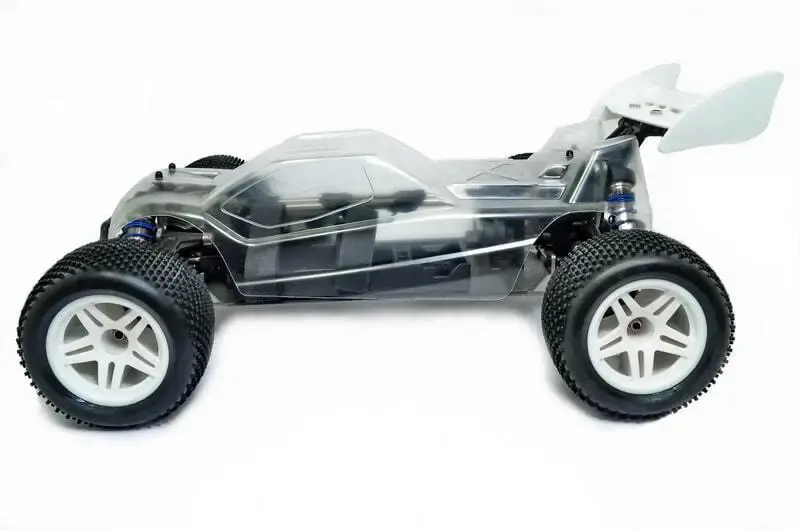

  • Body: Clear body allows for personal customization.
  • Caster & Camber: Both adjustable for fine-tuning handling characteristics.



What You Need (Not Included)

  • Radio: 2 channel.
  • ESC & Motor: High-performance compatible system.
  • Steering Servo: High-torque required.
  • Tire Glue: Needed for tire assembly.
  • Paint: Required for body finishing.
  • Batteries: LiPo batteries with single Dean plug connector.
  • Charger: Compatible battery charger.
  • AA Batteries: 4 for transmitter operation.
