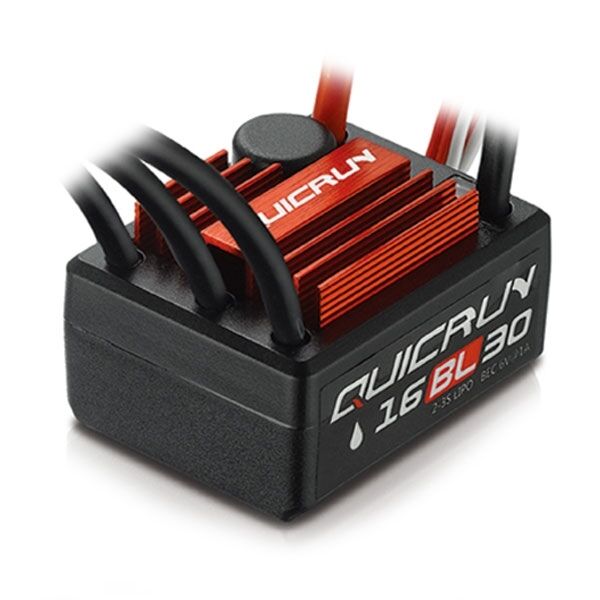

Hobbywing 30110000 Quicrun WP-16BL30 Waterproof 1/18th Scale Brushless ESC

Features:

  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks.
  • Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection.
  • One-button (the “SET” button on the ESC) sets the ESC. All parameters easily reset to factory default settings.
  • Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
  • Risk Free a 180 day limited warranty in North America.

Specifications:

  • Cont./Peak Current/Resistance: 30A/180A/0.002?
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1:18 & 1:16 On-road/Off-road/Buggy/Monster
  • Motor Limit: 2S LiPo or 6 cell NiMH:
    • On-road: 2435-size or smaller motor with the KV<8000
    • Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
  • Motor Limit: 3S LiPo or 9 cell NiMH:
    • On-road: 2435-size or smaller motor with the KV<5500
    • Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
  • Battery: 4-9 Cell NiMH, 2-3S LiPo
  • BEC Output: 6V/1A (Linear Mode)
  • Size/ Weight: 36(L)*28(W)*16(H) / 38g
  • External Program Port: Not Available
  • Fan: No cooling fan
