Buy Hobbywing 30112616 Xerun XD10 Pro Drift Spec Brushless Speed Controller (Purple)

Description

Specifications

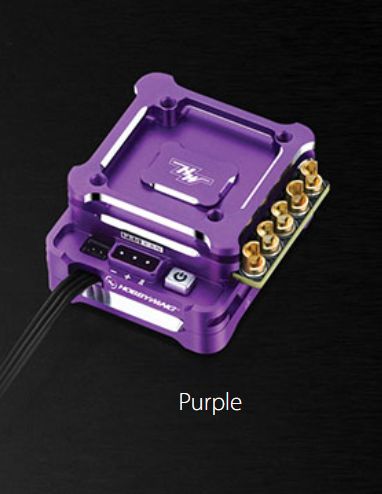

Hobbywing 30112616 Xerun XD10 Pro Drift Spec Brushless Speed Controller (Purple)

Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller.

Features:

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Specifications:

Application: 1/10th drift car

Cont./Peak Current: 100A/800A

Input Voltage: 2S LiPo/4-6S NiMH

BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)

Wires & Connectors: 13AWG 200mm

Programming device: LCD program box, OTA programmer (Available through Firmware update)

Firmware: LCD Program box via USB software (PC only), OTA (iOS / Android)

Size & Weight: 40.7x35.0x32.0mm (w/Fan)

Weight: 95g (w/ wires)

Motor Limit: 2S LiPo/6S NiMH ?8.5T

Includes:
