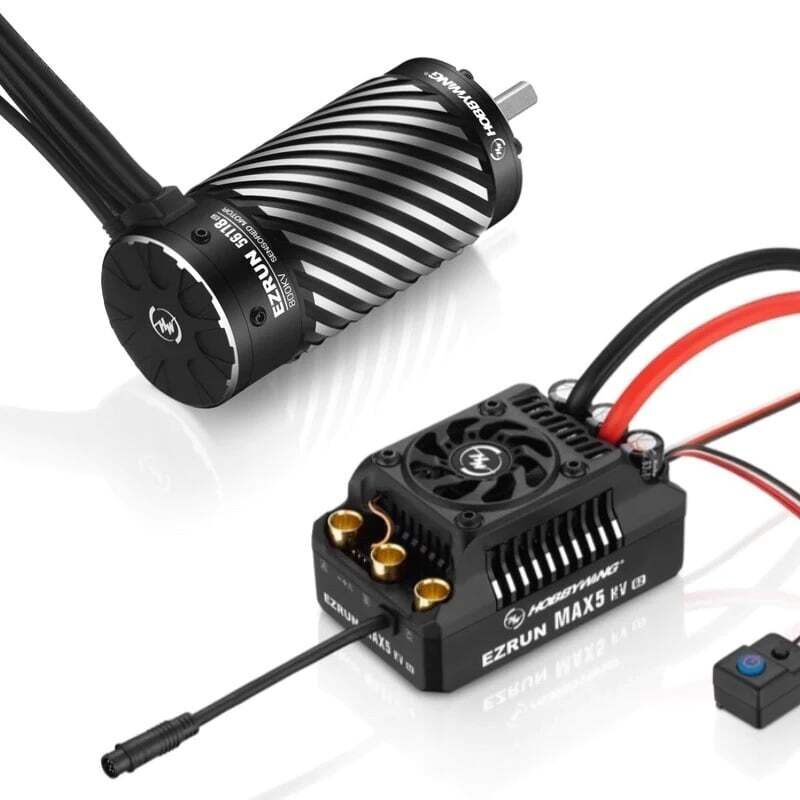

Hobbywing Ezrun MAX5 HV Combo 56118SD 800kV G2

Discover impressive performance with the second generation of the Ezrun MAX5 HV G2 ESC - now available in the combo version with the matching 56118SD G2 motor with 800kV! This enhanced MAX5 series with 250A offers numerous innovations, making the driving experience with 1/5th scale buggies and trucks even more thrilling.

Compared to the regular MAX5 combo, the sensor mode has been significantly improved and equipped with a waterproof cable for reliable performance. The power has been increased by a whopping 18%, while reducing heat generation, resulting in even more power and efficiency. The ESC's strong, explosive, and stable output power, along with excellent low-speed linearity, ensures it excels in various applications. Quick acceleration, high-speed maneuvers, jumps, and slower driving are no problem at all. Overall, the ESC has been so greatly improved that you won't want to look back. Especially when paired with the EZRUN 56118SD G2 motor, you also benefit from motor overheating protection and turbo timing adjustment.

It's the perfect way to dive right into the 1/5th scale world with ease!



Features

  • Built-in ultra-strong switching mode BEC to support various servos.
  • Up to 24° of turbo timing adjustment (when using a 56118 G2 motor).
  • Data logging function.
  • 12 adjustable parameters.
  • Increased capacitor capacity by 45%.
  • New waterproof sensor cable.
  • Fully sensored system for enhanced acceleration and more powerful performance.
  • With the EZRUN 56118SD G2 motor, the MAX5 HV G2 features integrated motor overheat protection.
  • Easy-to-disassemble motor for maintenance work.



What's In The Box

  • 1x Ezrun MAX5 HV G2 ESC with 250A
  • 1x 56118SD G2 Motor with 800kV
  • 1x Manual



Product Specifications

ESC
Type: Brushless Sensored
Current (cont./peak): 250A / 1600A
No. of Cells: 6-12S LiPo
Motor Limit: 8S Lipo: KV <= 1200
12S Lipo: KV <= 800 56118 Motor
BEC: 6V/7.4V/8.4V @8A (Switch Mode)
Fan: Yes (BEC)
Programming: LED Program Card
LCD Programming Box (G2)
OTA Bluetooth Programmer
Seperate Programming Port
Waterproof: Yes
Dimensions: 94.5x59.4x50.9mm
Weight: 428.5g
Application: 1/5 Buggy, Truck
Motor
Type: Brushless, Sensored
kV Rating: 800kV
No-Load Current: 6.9A
No. of Cells: 8-12S LiPo
Poles: 4
Diameter: 56mm
Length: 119.2mm
Shaft Diameter: 8mm
Shaft Length: 30mm
Weight: 1277g
Application: 1/5 Buggy, Truck
