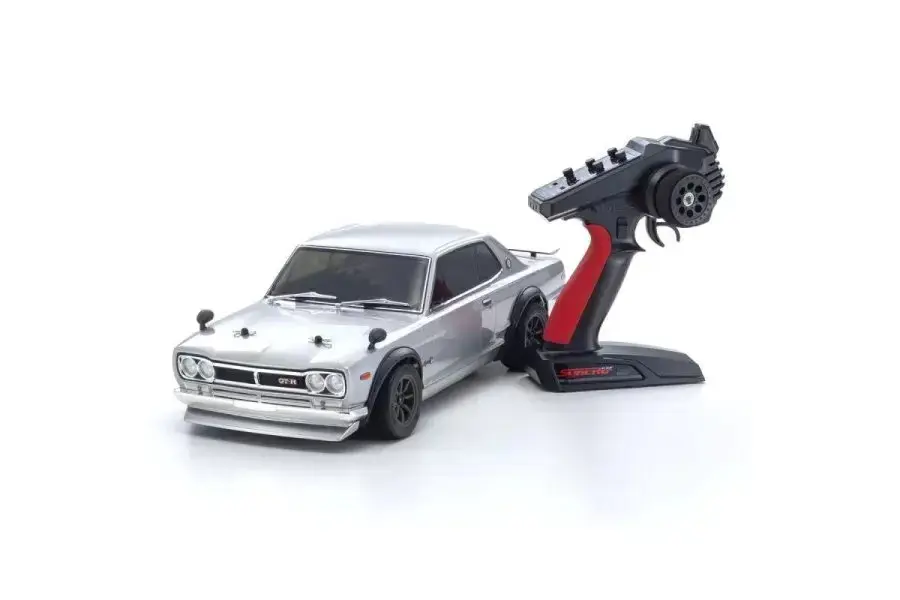

Kyosho 1/10 Fazer Mk2 Nissan Skyline 2000 GT-R Tuned Ver 4WD Electric On Road RTR Silver

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight, while core strength and rigidity is increased through new materials, ribbing, and stiffeners on the front and rear. In addition, the symmetrical chassis design synergises excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. The included brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles, and allows the wheelbase to be adjusted to 270mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except a charger and battery for the chassis, and batteries for the transmitter.

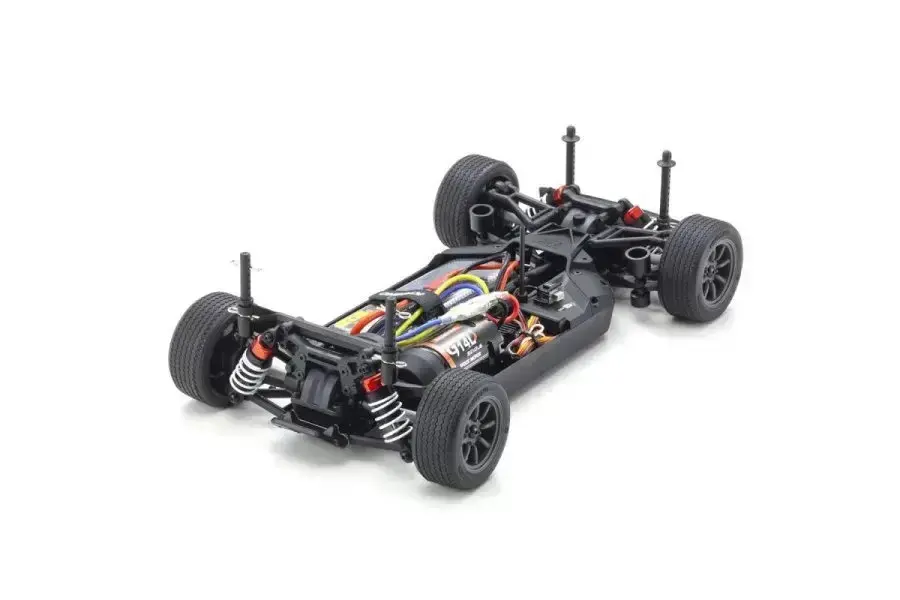

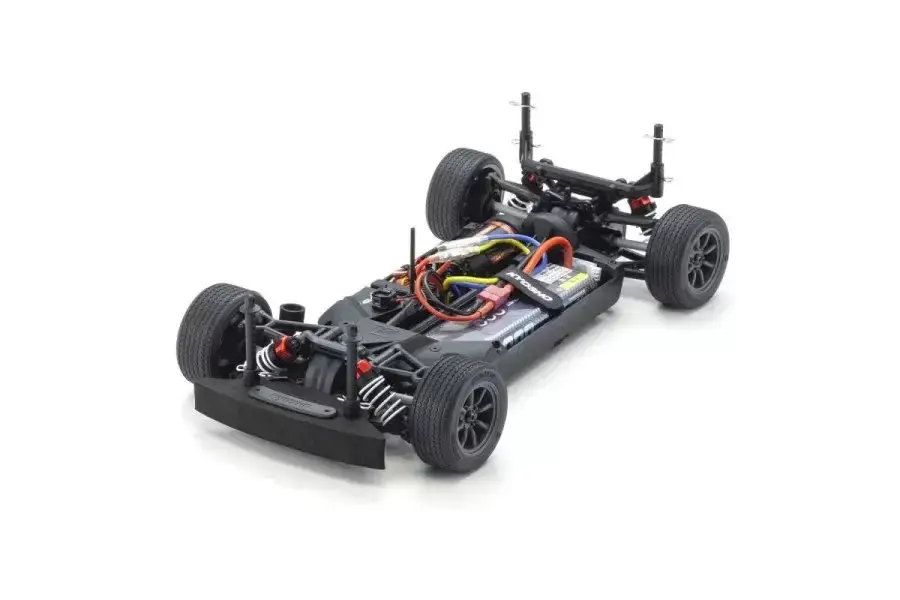

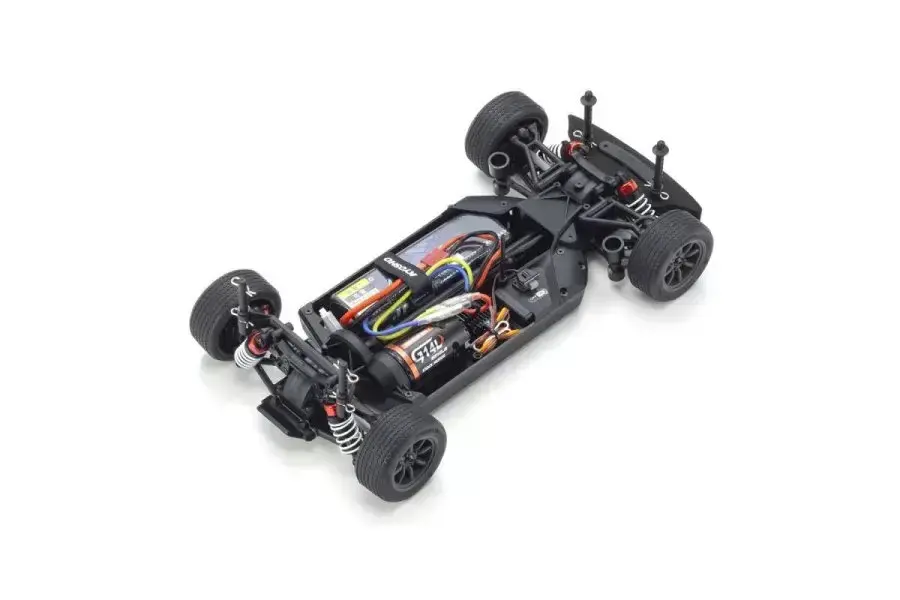

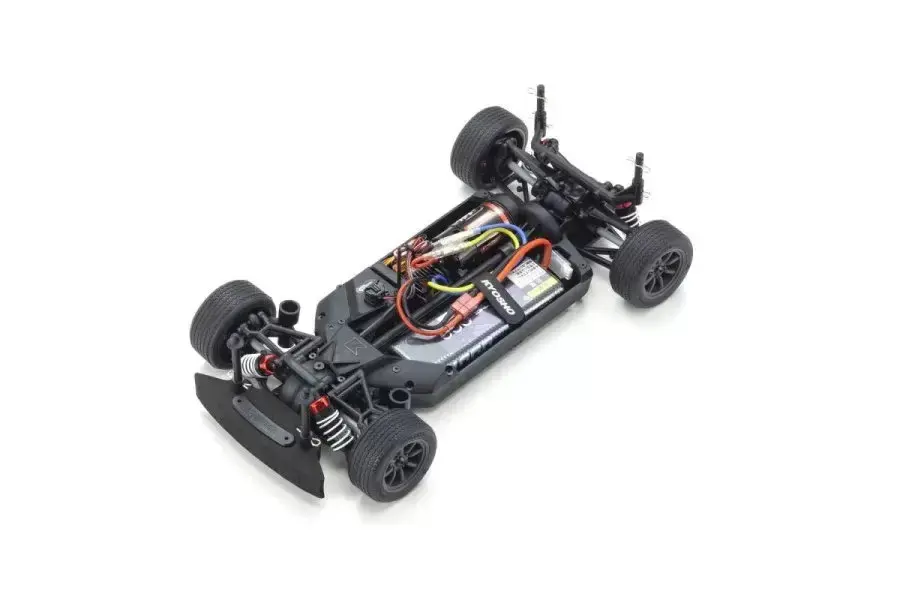

Achieves a low centre of gravity with its simple, functional design. Featuring an integrated gearbox that optimises torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without the need for an upper deck.

Achieves a low centre of gravity with its simple, functional design. Featuring an integrated gearbox that optimises torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without the need for an upper deck.

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are countersunk head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are countersunk head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimised on the front suspension. Simple ball-connected steering hubs provide reliable movement. Interchangeable on both front and rear left-right hub carriers optimise spare parts utilisation and improve maintenance efficiency.

Handling factors such as bump steer and scrub radius are optimised on the front suspension. Simple ball-connected steering hubs provide reliable movement. Interchangeable on both front and rear left-right hub carriers optimise spare parts utilisation and improve maintenance efficiency.

includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

Equipped with oil-filled shocks as standard. The vehicles height can be changed for maximum performance.

Equipped with oil-filled 12mm big bore shocks as standard. The vehicles height can be changed for maximum performance.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratios. The new fixed gear mesh motor mount has holes for use with different pinion gears. Simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratios. The new fixed gear mesh motor mount has holes for use with different pinion gears. Simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.




Features

  • “Ultra Scale Body” replicates the fine details of the actual body of the car - Kyosho took a step further in scale realism

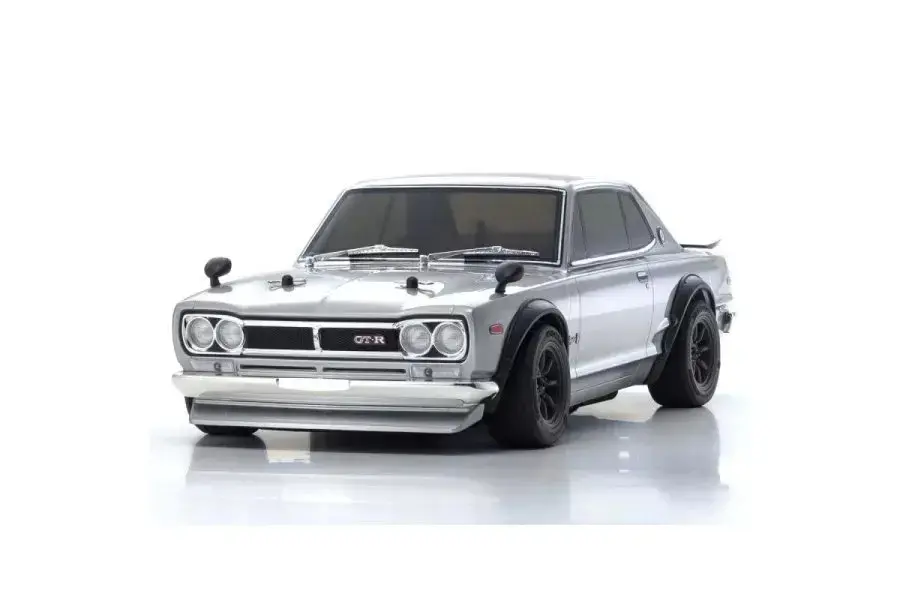

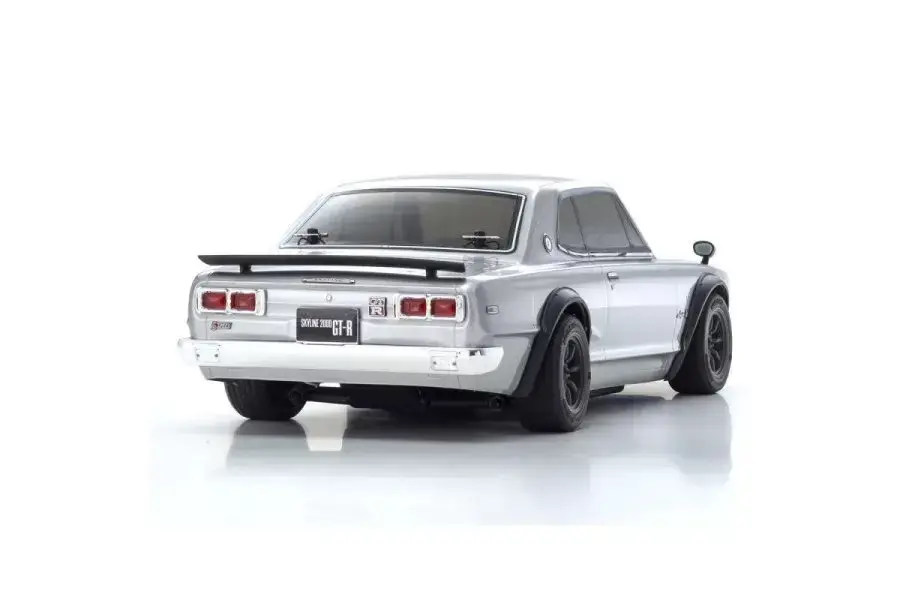

  • Licensed Nissan Skyline GT-R (KPGC10) body
  • Shaft drive full-time 4WD touring chassis (FZ02) with slipper clutch
  • Equipped with vintage touring car (VTC) tyres and Rostyle type rims designed to match vintage cars
  • The separately sold LED light unit 97054 can be attached to the front and rear light buckets
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
  • Equipped with full ball bearings to reduce power loss throughout the entire drivetrain
  • 12mm big bore shocks
  • Features KS202W waterproof steering servo
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
  • Equipped with a plated dummy brake disc and a painted brake caliper for improved scale realism
  • Uses button head screws with hexagonal holes, making maintenance possible with fewer tools and the reliable tightening
  • Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary and allows for 29T to 37T
  • Performance can be further enhanced by installing various optional parts



What's In The Box

  • Completed chassis with RC radio installed
  • Factory assembled body complete with colour scheme
  • Syncro KT-231P+ transmitter
  • Hexagonal wrench
  • Spanner
  • Setting change parts



What You Need (Not Included)

  • 4 x AA batteries for transmitter
  • Battery for chassis (recommended: 7.2V Ni-MH battery)
  • Charger for battery for chassis
  • Tools



Product Specifications

  • Scale: 1/10
  • Length: 450mm (17.7")
  • Width: 195mm (7.67")
  • Height: 136mm (5.35")
  • Chassis Ride Height: 8mm (0.314") approx.
  • Wheelbase: 260mm (10.2")
  • Body width: 200mm (7.87")
  • Tread (F/R): 167mm (6.57")
  • Tyres (F/R): φ64x27.7mm (φ2.51x1.09")
  • Gear: Ratio 6.54:1
  • Weight: 1650g (3.63lbs) approx.
  • R/C System: Syncro KT-231P+
  • Motor: G14L
