Savox SC-1251MG Black Edition Low Profile Digital "High Speed" Metal Gear Servo - SAV-BE-SC1251MG



Product Information

Savox's SC-1251MG Black Edition Low Profile Digital "High Speed" Metal Gear Servo features a sleek black aluminum center case with laser etched details, as well as a 70mm long heavy duty lead wire. The Savox SC-1251MG combines leading edge technology, with super high 12 bit (4096) resolution and Metal Gears. With it's low profile case, the SC-1251MG is ideal for most 1/10 onroad and 1/10 buggy applications, as well as aileron servos in gliders and airplanes that have thin wing profiles.



Features

  • Light weight
  • Coreless Motor provides high speed, incredible efficiency, and low power consumption
  • The Aluminum Case design not only looks good but also allows for lower operating temperatures.
  • Totally Green – from materials to production, these servos are environmentally friendly.
  • Ideal as a steering servo for 1/10 surface applications, and as a aileron servo in gliders and airplanes that have thin wing profiles.



Product Specifications

  • Speed: @4.8V: .10 sec/60 @6.0V: .09 sec/60
  • Torque: @4.8V: 97.2 oz-in @6.0V: 125.0 oz-in
  • Weight: 44.5g
  • Bearing: Dual
  • Type: Low Profile
  • Gear: Metal
  • Output Shaft: 25T Spline (Futaba)
  • Case: Aluminum Heatsink

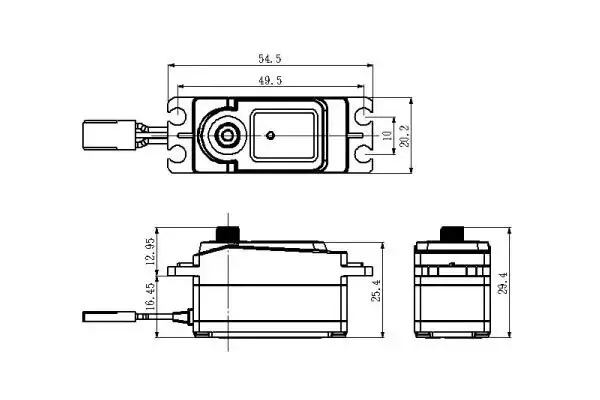

  • Case Size (LxWxH): 40.8x20.2x25.4mm
  • Frequency: 250-333hz
  • Pulse Width Frequency: 1520
