SkyRC BD380 Battery Discharger & Analyser

The SkyRC BD380 Battery Discharger & Analyzer is an advanced tool designed for hobbyists and professionals who need to monitor and maintain the health of their battery packs. With its ability to discharge batteries efficiently and provide comprehensive data analysis, the BD380 is essential for ensuring peak performance and longevity of your LiPo, LiHV, LiFe, and NiMH batteries.



Display

  • Display Type: TN
  • Size: 1.77 inch
  • Panel Active Area: 43.20*57.60mm
  • Resolution: 160x128 Pixel
  • Number of Colors: 262K



Power

  • DC Input Voltage: 3-30V
  • Discharge power: Max. 380W
  • Battery Connector Interface: XT60
  • Discharge: 0.3A-40.0A

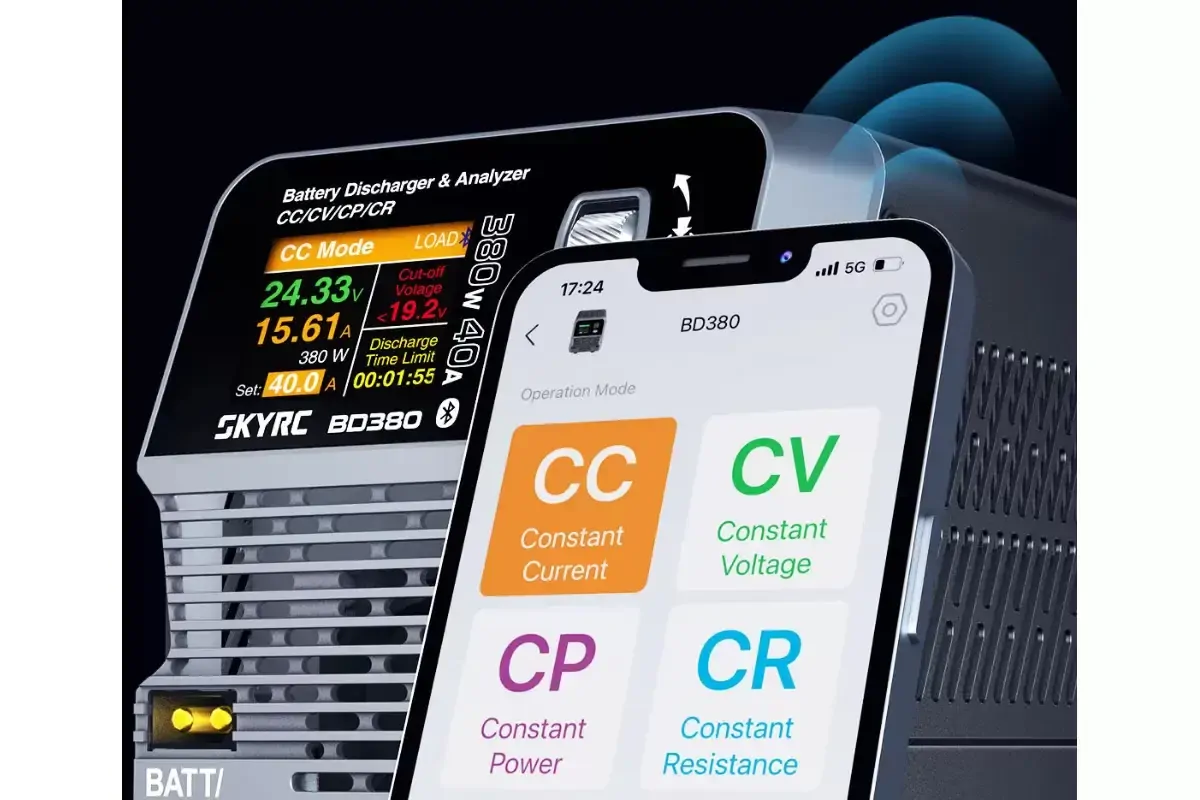

Operating mode

  • CC Constant Current: 0.3-40.0A
  • CR Constant Resistance: 1-100Ω
  • CP Constant Power: 1-380W
  • CV Constant Voltage: Maximum power is 180W. Note: Do not connect the battery in this mode



Working and Storage

  • Operating temperature: 0℃-40℃
  • Working humidity: 0%-75%
  • Storage temperature: -10℃-70℃
  • Storage humidity: 0%-75%



Product Specifications

  • Case Material: PC-ABS V0
  • Case Size: 159.7*110*121.6mm
  • Weight: Approximately 1100g
  • SKU: SK-600153
