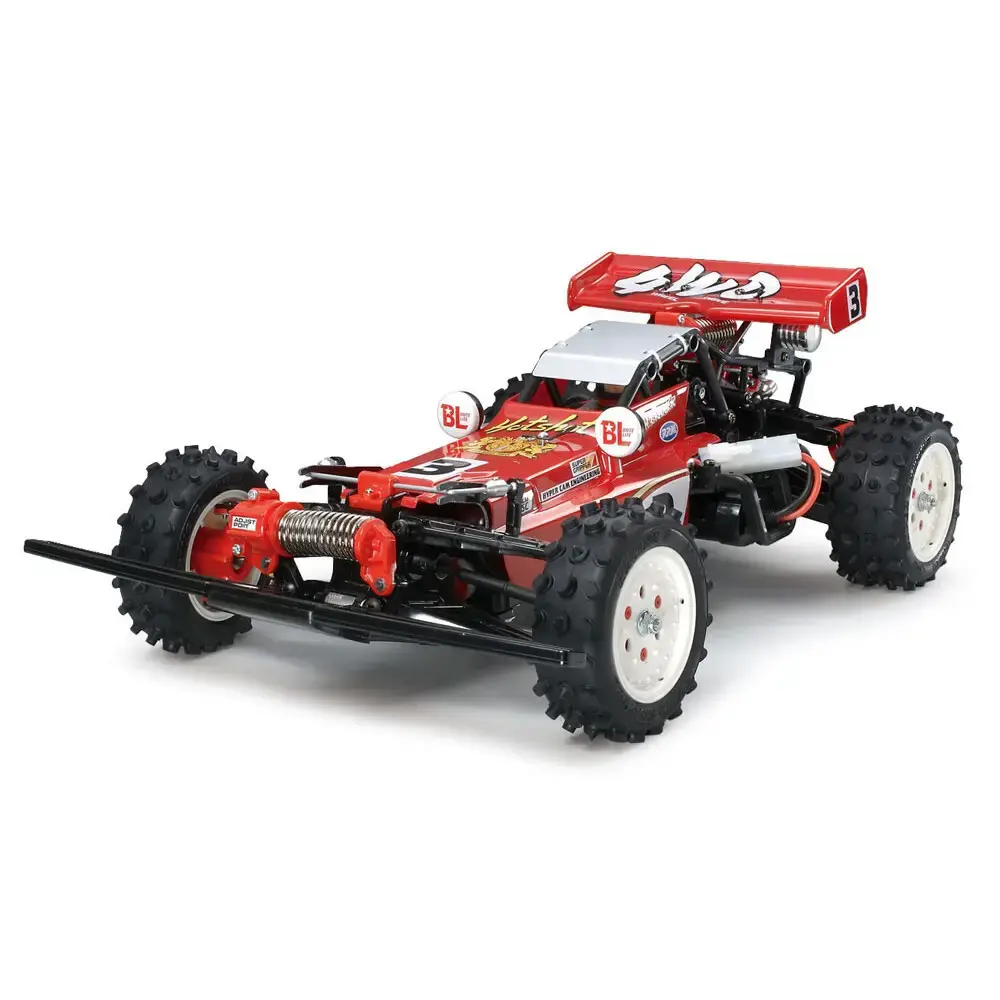

TAMIYA 1/10 4WD BUGGY HOTSHOT 2007 RC KIT

Fans around the world have been clamoring for more re-releases of classic Tamiya R/C cars and Tamiya has indeed been listening. The eye-catching Hotshot 4WD buggy, which was originally released in the 1980s and helped popularize the R/C hobby, now makes a return with its timeless body shape matched with updated improvements to let both old and new R/C fans enjoy exciting off-road action.

Features:

Chassis: Monocoque ABS Resin
Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3 (77mm) diameter, 1.1 (28.5mm) wide
Rear 3 (77mm) diameter, 1.4 (37mm) wide
Wheels: Nylon resin, White in color
Front 1 (25.4mm) wide, 2 (51mm) diameter
Rear 1.3 (33mm) wide, 2 (51mm) diameter
Bumpers: Front plastic
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver

INCLUDES:

Tamiya Hotshot buggy with two shocks, 540 motor, heat sink body, tires, wheels, 13 and 15 tooth pinion gears, spur gear, instructions and decal sheet

REQUIREMENTS:

Radio: 2-Channel with 1 Servo for Steering
Radio Batteries: (8) AA size
ESC
Battery: 6-cell wstandard connector
Charger: ACDC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment

SPECIFICATIONS:

Length: 15.3 (390mm)
Width: 9.2 (235mm)
Height: 5.9 (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
Length: 8.7 (220mm)
Width: 3.7 (95mm) at rear wheels (widest point)
3.1 (80mm) at front wheels (thinnest point)
Height: 2.3 (59mm)
