Tamiya 1/10 BBX RC Kit BB-01

Tamiya's designers have taken inspiration from its back catalog of iconic 2WD off-road buggies to bring fans of radio control the ALL-NEW BBX! This 1/10 R/C 2WD off-road buggy model features a combination of classic design and modern performance. Its brand-new chassis, reminiscent of 1980's sand rail dune buggies, is a hybrid monocoque-roll cage and employs rear trailing arm suspension inspired by full-size UTV's. The new body is designed by famed Japanese artist Atsushi Arino and utilizes a classic 1980's inspired livery with retro wheels and tires to match!

  • The body is designed by Atsushi Arino
  • 2WD Dune Buggy with Monocoque-Chassis and roll-cage
  • Multi-piece Polycarbonate Buggy Body
  • Driver figure and light cases included
  • oil filled Differential
  • C.V.A. Aeration Oil Damper front/rear
  • fully ball raced
  • Steel Universal drive shaft
  • double wishbone suspension front with A-Arms
  • Rugged rear trailing arm suspension
  • metal-plated Off-Road wheels (12mm Hex)

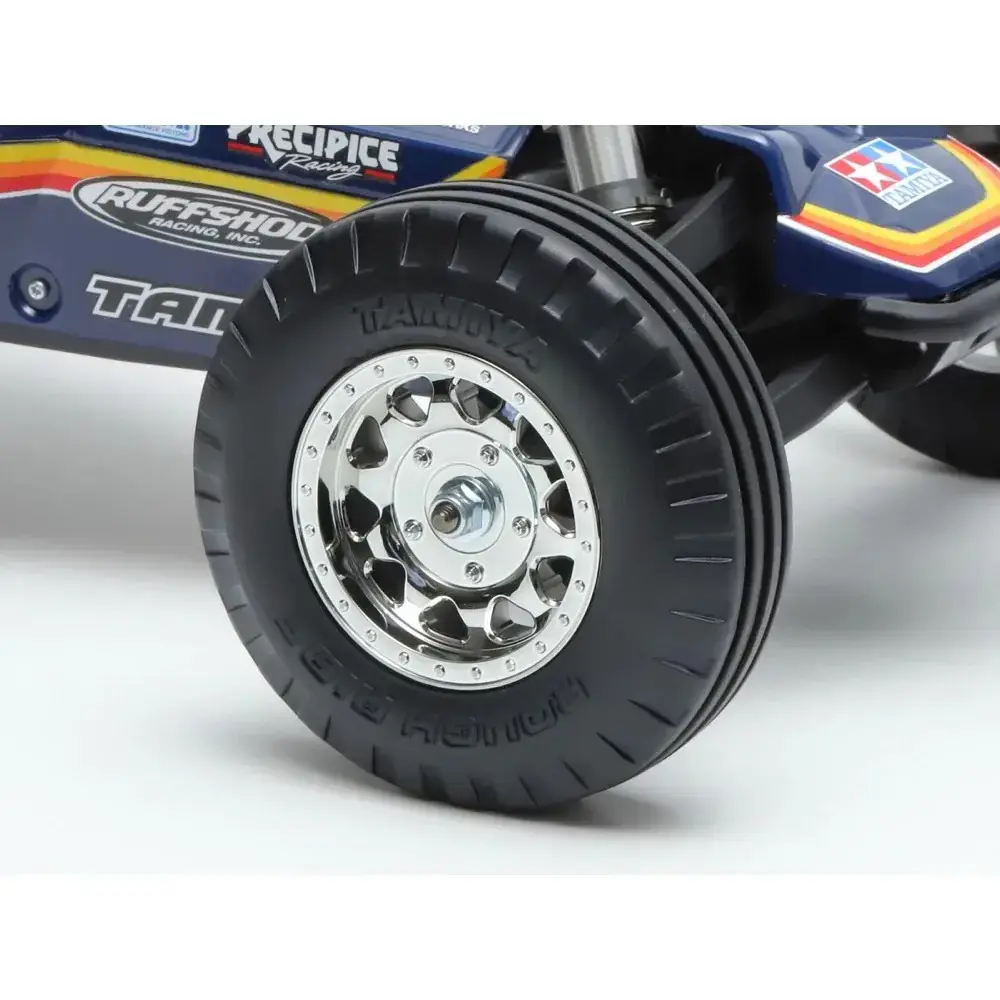

  • Rough Ride Grooved front tires with great grip

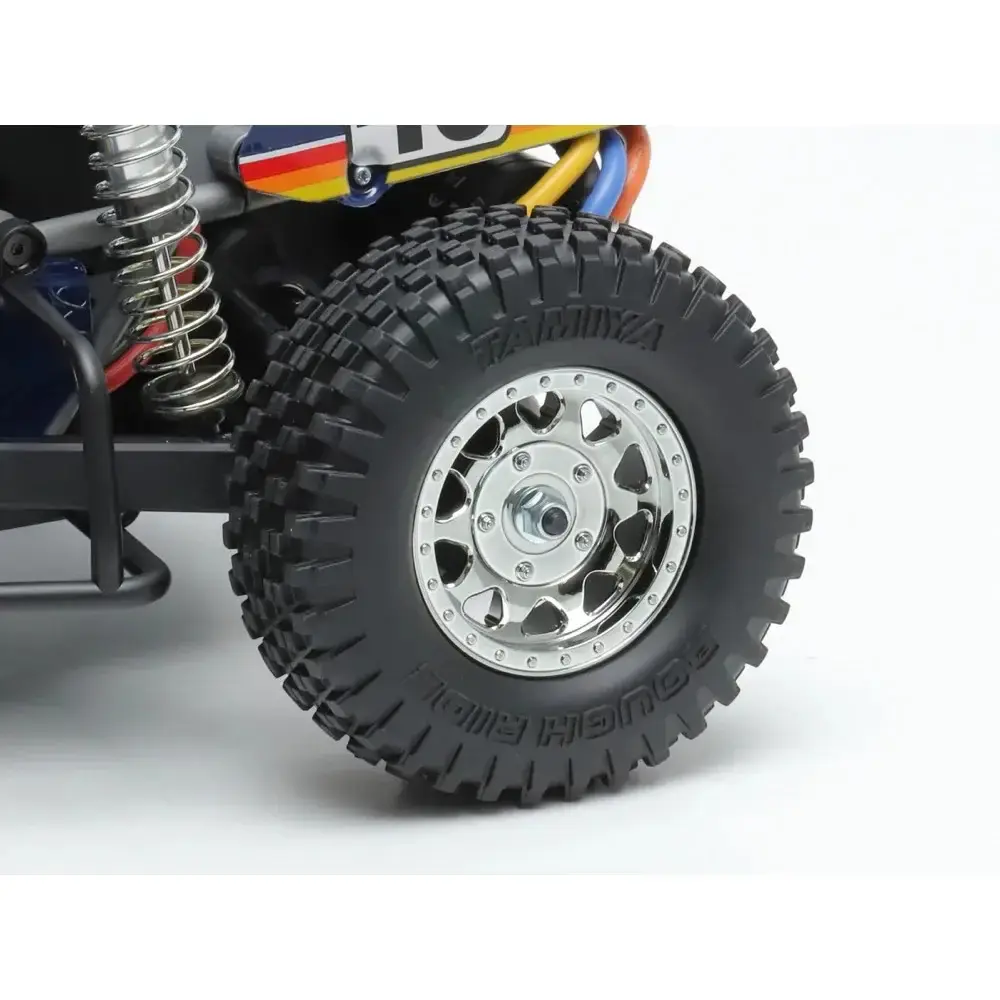

  • Rough Ride Block spike tires rear with great grip




Key Features

  • 1/10 R/C assembly kit. Length: 414mm, height: 136mm, width: 233mm. Wheelbase: 283mm.

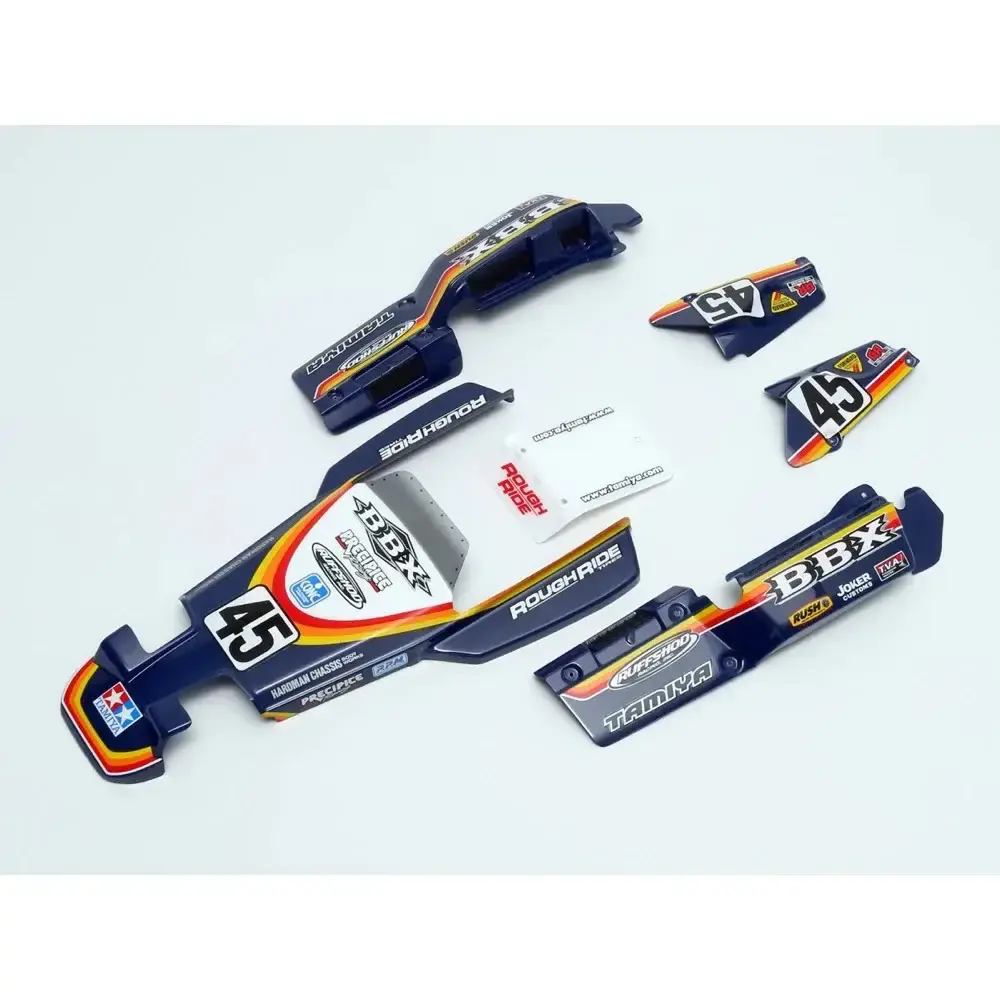

  • The classically designed 0.7mm thick polycarbonate body is split into three sections to recreate the tapered lower shape of the actual dune buggy.

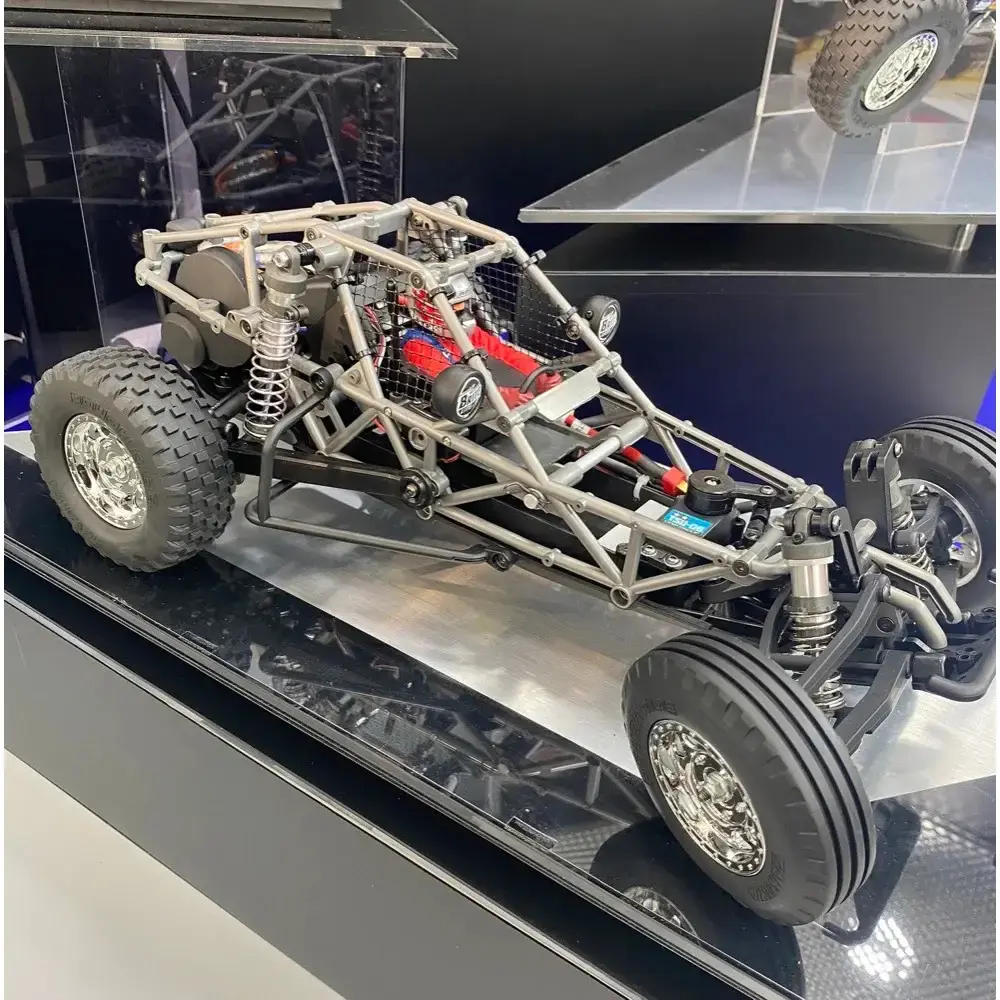

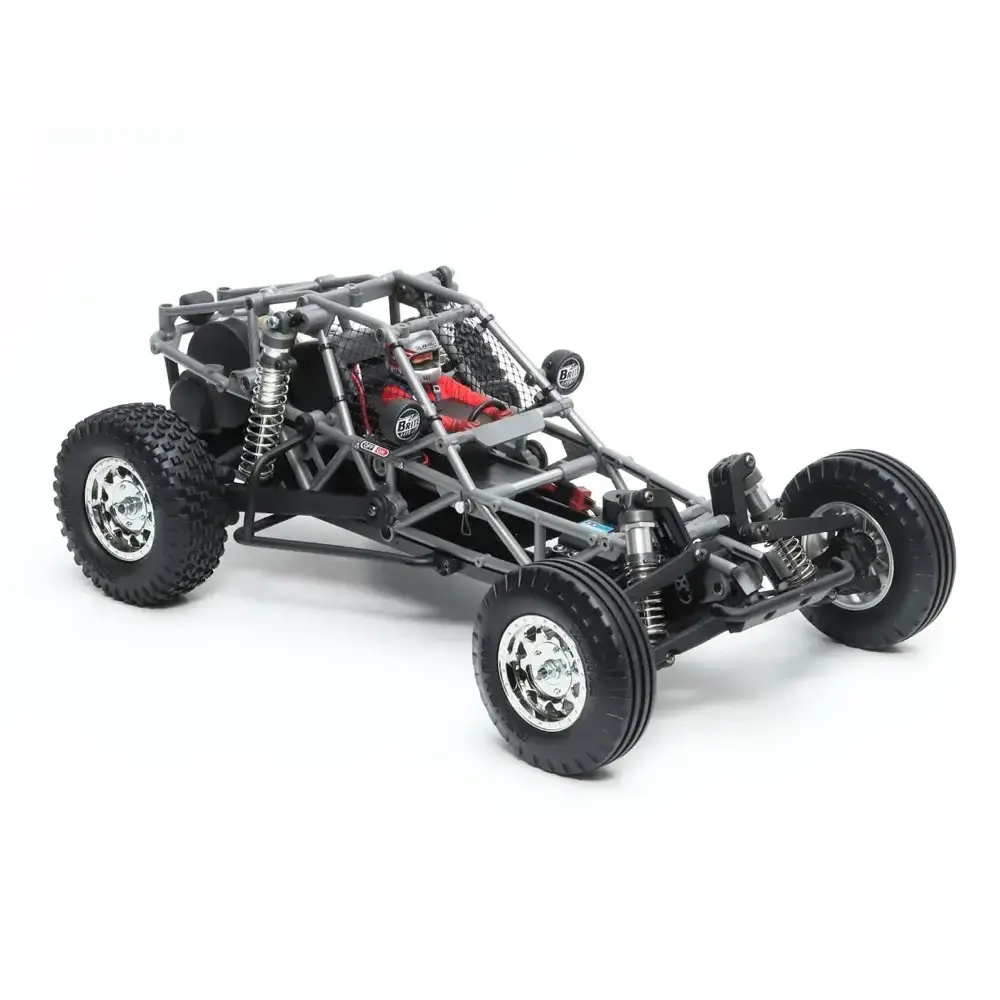

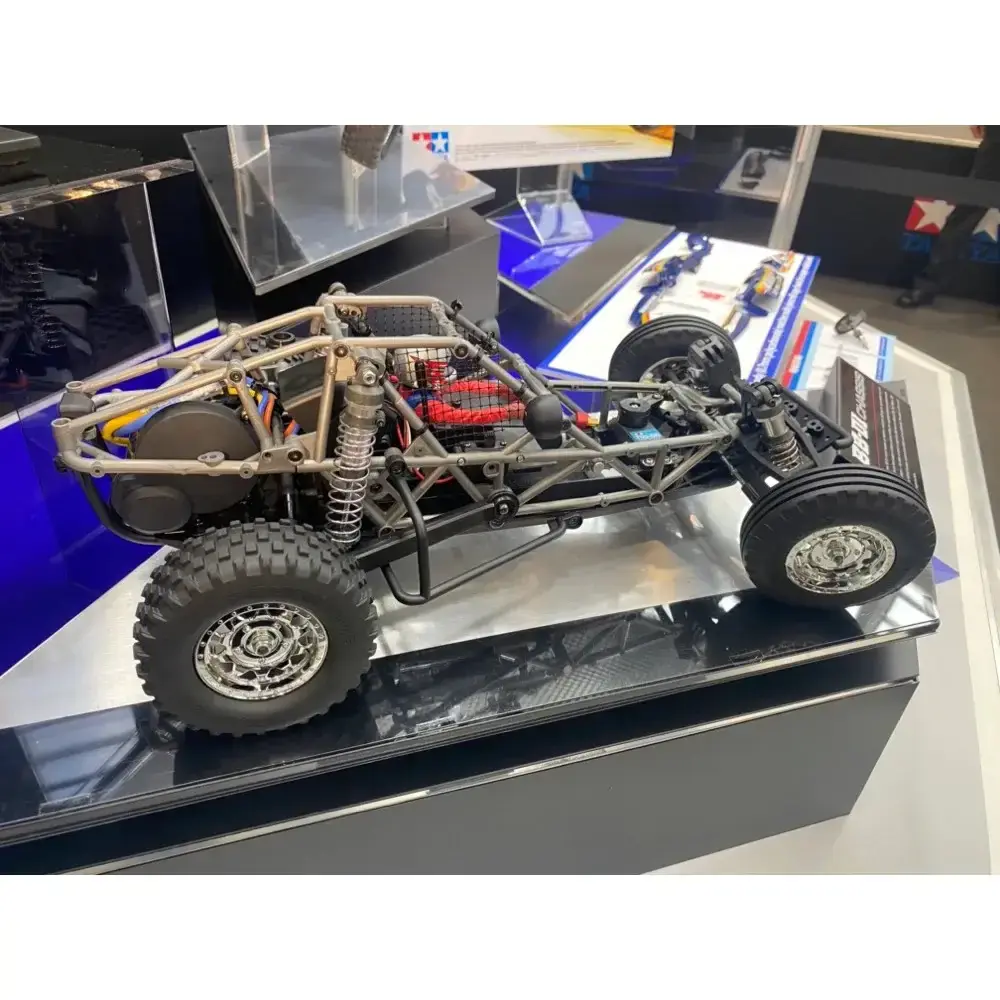

  • NEW: Newly designed 2WD chassis is based on the one-piece monocoque frame and roll cage to allow use of realistic bodies.

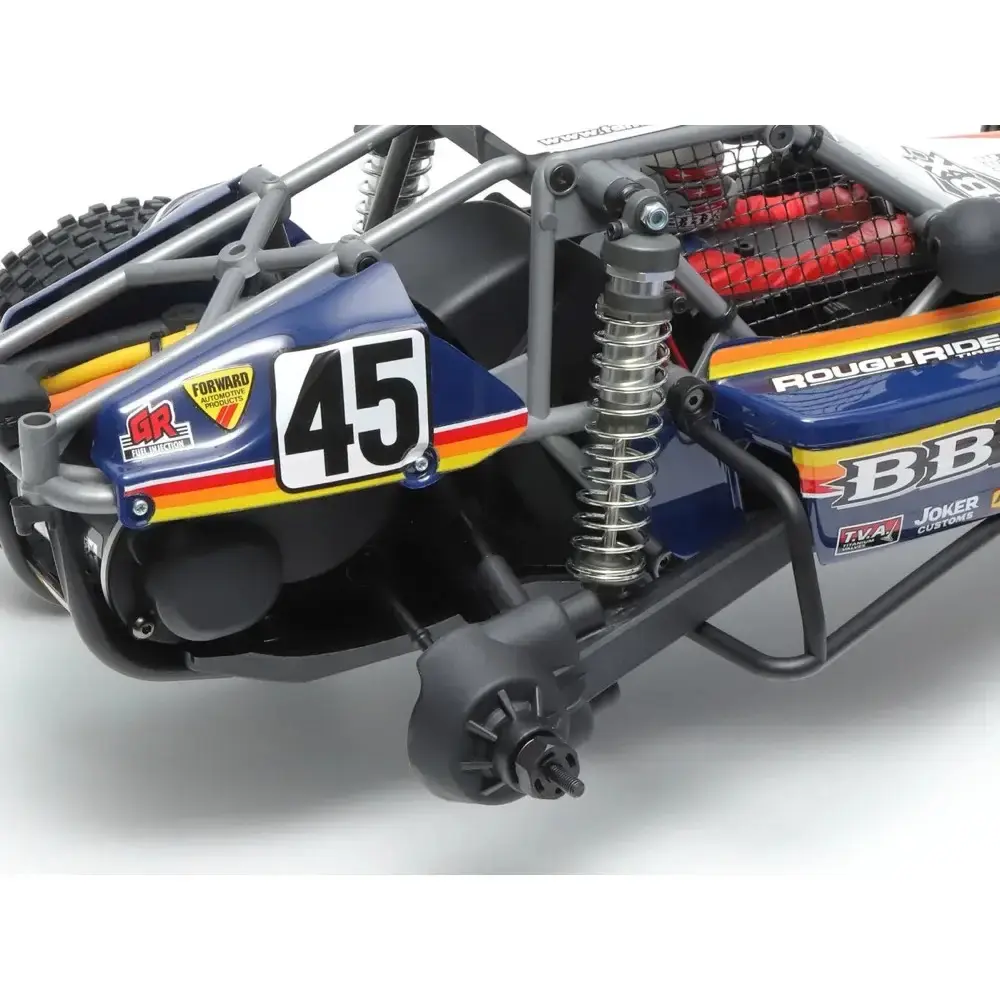

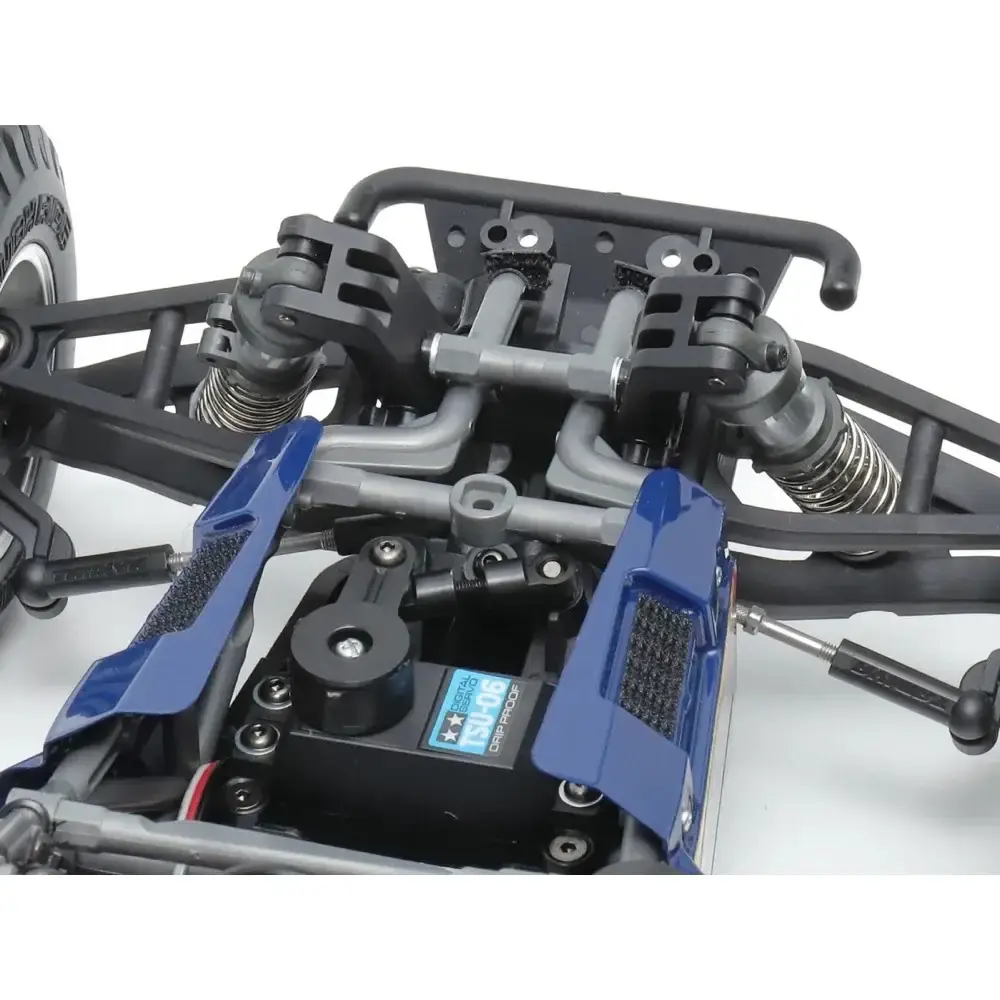

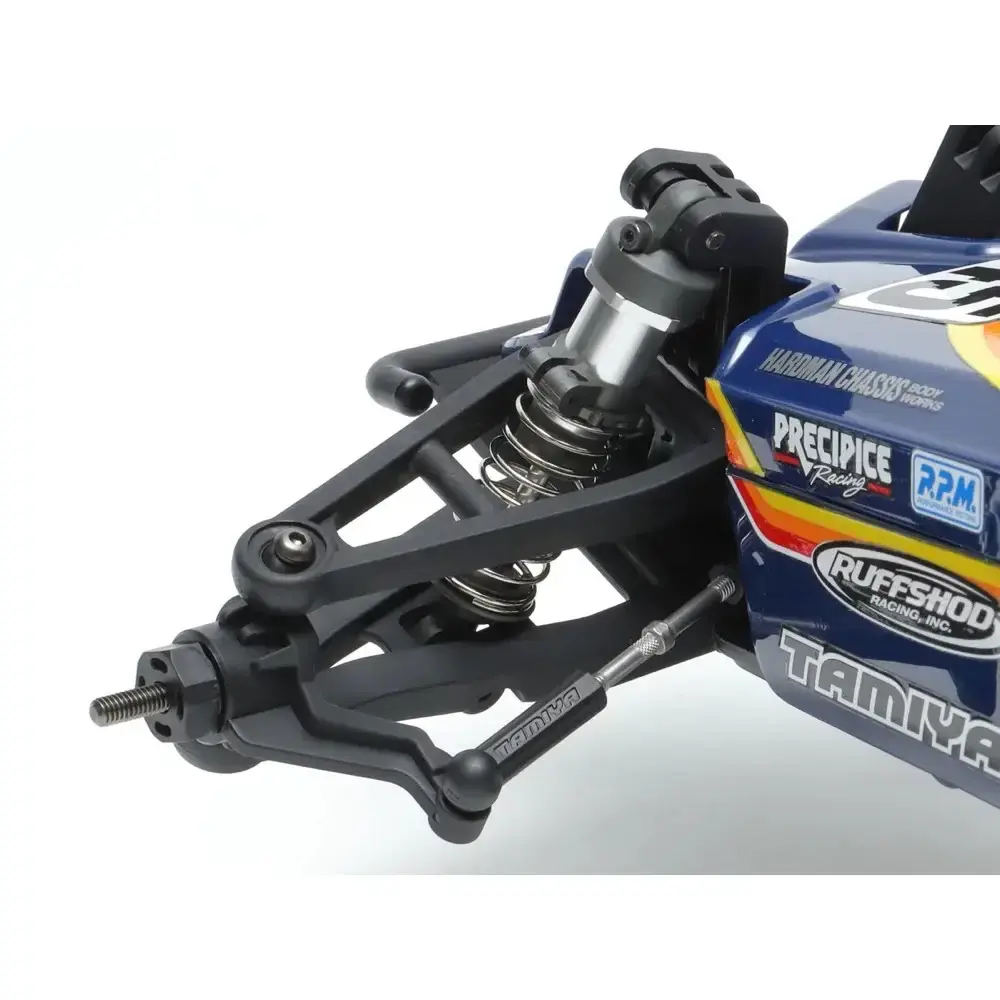

  • The BB-01 chassis employs new front double wishbone suspension with A-shaped arms and rear trailing arm suspension with long trailing arms which are inspired by UTVs and give impressive performance.

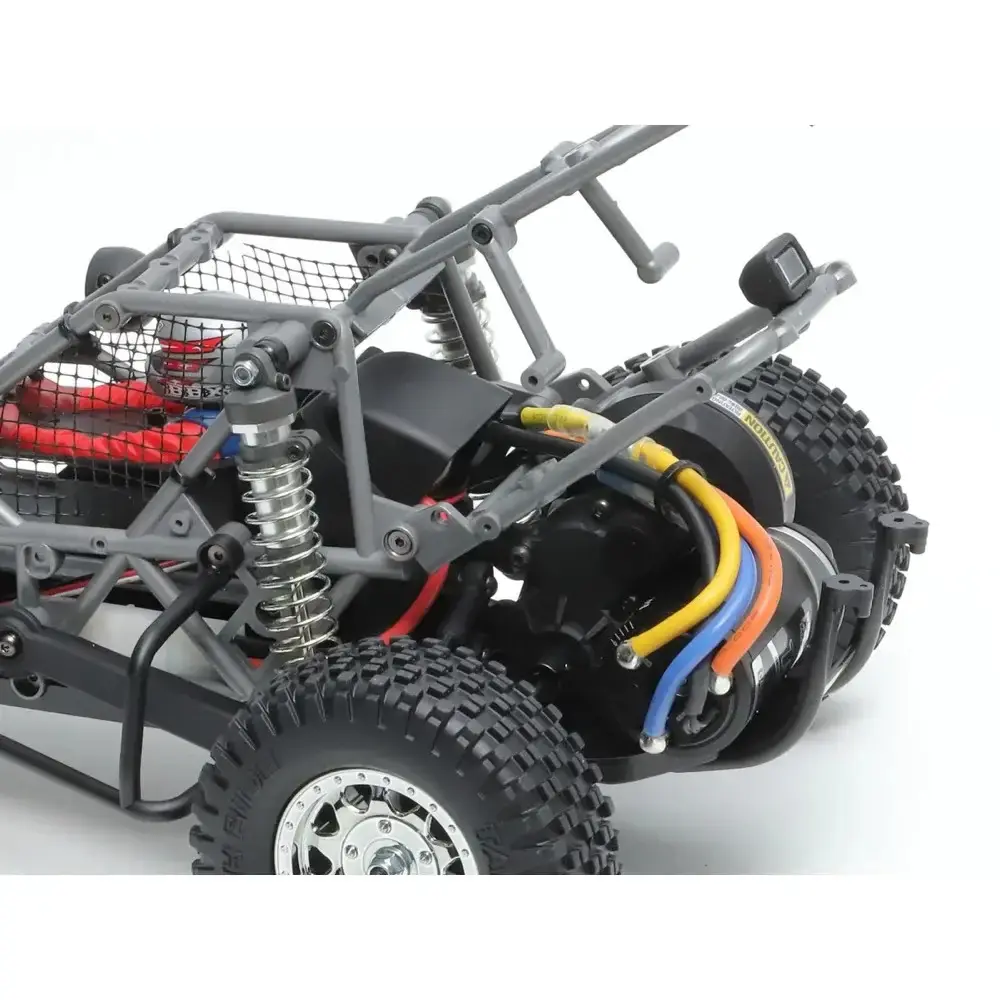

  • The 2WD chassis with rear motor features rear-position, inspired by the same layout of the actual vehicles of the era and allows great rear traction.
  • The four-wheel double wishbone suspension system uses CVA oil front/rear aluminum aeration dampers for impressive performance and classic look.
  • Transmission uses the TA06 rear ball differential for consistent traction and may be outfitted with the separately sold TA-06 oil-filled gear differential which allows the use of many existing Grade-Up parts.
  • Features full ball bearings and universal drive shafts.
  • Rear roll cage can be removed by detaching screws, which ensures ease of maintenance around motor.
  • NEW: New metal-plated bead lock type wheels are paired with NEW large-diameter tires.

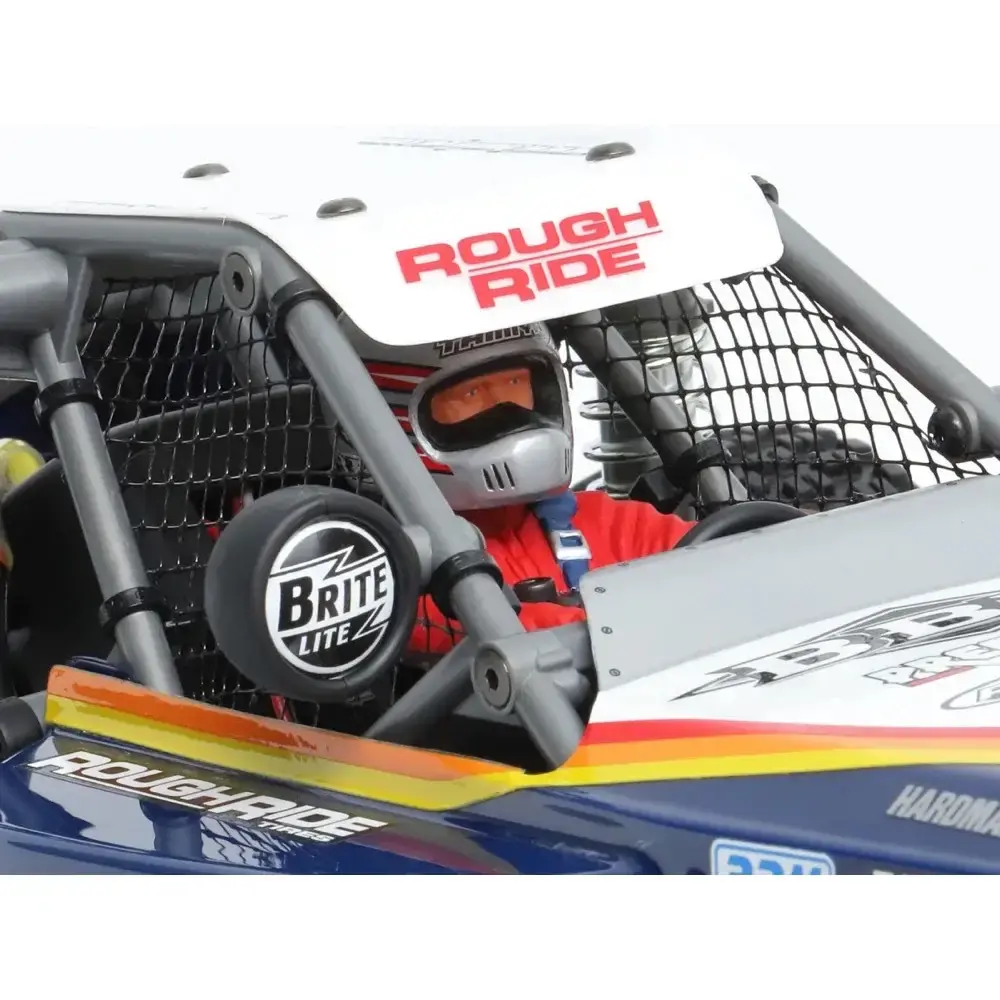

  • Includes driver figure and light cases for extra realism, and 5th spare tire mount adapter. (Spare tire may be purchased separately for added realism)
  • Requires 2-channel radio, LOW-PROFILE steering servo (Example Dimension: 40.5 mm x 20 mm x 25.4 mm
    1.59 in x 0.79 in x 1.0 in, 540) motor, ESC, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.



What You Need (Not Included)

  • 2-channel radio
  • steering servo
  • 540 motor
  • ESC Electronic Speed Controller
  • 7.2-7.4 volt battery with compatible charger
  • Tamiya PS paint



Product Specifications

  • Adjustable Gear Ratio: Yes
  • Bearings: Includes full ball bearings
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: FRP Fiberglass Reinforced Plastic
  • Chassis Type: BB-01
  • Construction Type: Assembly Kit
  • Differential Type:: Gear
  • Drive Type 2WD
  • Electronic Speed Control (esc): Sold Separately
  • Led Lights:::: Sold Separately
  • Motor Sold Separately
  • Required To Complete 2-channel radio, low-profile steering servo, ESC, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
  • Scale 1/10
  • Shock Damper Aeration oil-filled
  • Suspension Fully independent wishbone front with independent trailing arm rear
  • Terrain Use: Off-Road
