Team Corally Asuga XLR 6S Brushless Power RTR Green

Introducing the all new and extra large Asuga XLR 6S RTR Buggy from Team Corally. This unique vehicle is 15% larger than traditional 1/8 buggies and offers a driving experience like no other car available today! Developed with a laser focus on the smallest details, the Asuga XLR is precision engineered to satisfy its owners with the fastest, most durable and best handling RC buggy ever produced. As a bonus, the Asuga XLR RTR is available in three body colors. Isn't it time your bashing program got big?

Bigger is better!

Larger than other models, the Asuga XLR offers greater ground clearance, massive suspension travel and oversized components on an all-new chassis that uses the proven, durable and 6S-compatible drivetrain system for which the 1 models /8th Team Corally are renowned.

By exploring just a few details that make the Asuga XLR unique, it becomes clear that this is no ordinary buggy:

  • 70% compatibility with existing 1/8 Team Corally models.
  • 3mm thick aluminum main chassis plate with side guards.
  • Ultra-rigid hybrid central frame reinforcement system.
  • CNC machined aluminum adjustable motor mount with aluminum and steel center differential.
  • Massive 16mm big bore, threaded aluminum, oil filled shocks with hard springs, reinforced 4mm pistons and oversized shock absorber lower ends.
  • CNC machined 5mm thick aluminum front and rear shock towers.

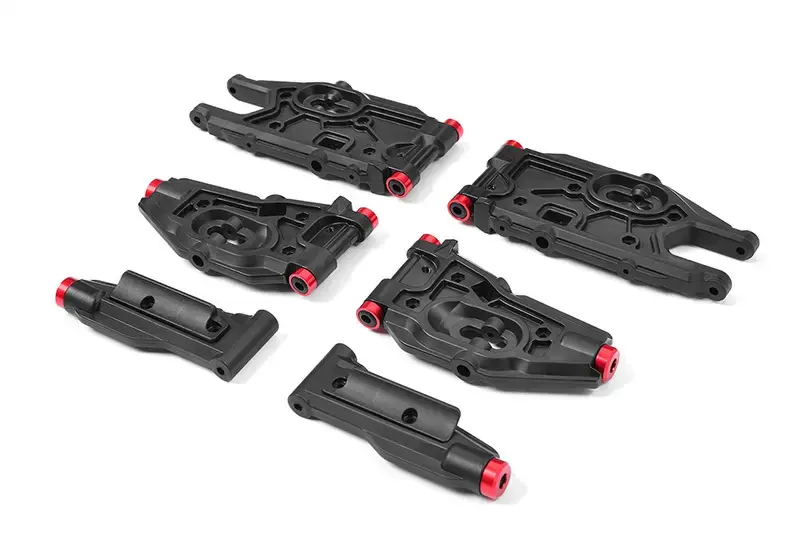

  • Massive, heavy-duty composite suspension arms with aluminum pivot pin and retaining balls for impressive durability. The front upper arms feature a unique aerodynamic control kit for added downforce and improved steering response.
  • 8mm thick aluminum suspension axle brackets, secured by eight 4mm mounting screws, include adjustable composite pinch blocks.
  • Large, heavy-duty composite steering blocks with new cushion ball mounting features.
  • Oversized composite rear hubs
  • Durable composite camber and tie rods.
  • Three precision liquid-filled differentials with CNC-controlled spiral-cut metal input and main gears.
  • Hardened and durable S2 steel drive joints and axles.
  • ABEC-3 rubber sealed ball bearings
  • Chassis skid plates with integrated modern front bumper.
  • Sprint RXA 130mm low profile, high grip tires designed for 6S power.
  • CT2R 2.4 GHz pistol grip transmitter and receiver with digital trims, dual speed steering and servo reversing.
  • Powerful Kuron 825 4-pole, 2050kv brushless sensorless motor.
  • Flexible and reliable Torox 185 6S ESC with LVC and user adjustable BEC and profile settings.
  • HV7225 high-speed digital steering servo with metal gears and an impressive 25 kg of torque.

Taller than other models with added ground clearance, massive suspension travel and oversized components, the Asuga XLR is an all-new chassis that uses proven drive components from existing Team Corally 6S models. The impressive size of the Asuga XLR allows for very precise handling, amazing acceleration, top speed and unmatched durability. Reset your expectations and think big with the Asuga XLR RTR from Team Corally.



What You Need (Not Included)

  • 6S 22.2V Lipo Battery
  • 6s Lipo Compatible charger
  • Lipo safe Bag



Product Specifications

  • 105+ km/h (65+ mp/h) possible
  • Pre-built XL Buggy available as RTR or Rolling Chassis
  • Team Corally TOROX 185 ESC 4-6S with LiPo protection (RTR only)
  • Team Corally Kuron 2050kV 4-Pole Brushless Motor 4-6S (RTR only)
  • CRHV-7225 HV Metal Gear, 25Kg Torque, Steering Servo (RTR only)
  • Team Corally CT2R Ergonomic, Interference-free 2.4GHz Transmitter (RTR only)
  • Aluminium servo arm
  • 3mm 7075 aluminum double-deck steering Ackermann system
  • Separate splash-proof and dustproof electronic box with transponder mount
  • XL Adjustable battery holder for all common LiPo batteries
  • Full set of ball bearings, rubber sealed
  • All transmission ball bearings are 8x16x5mm
  • Hardened steel spur gear and motor pinion
  • Three sealed metal differentials individually filled with silicone oil
  • Aluminum/Steel central differential
  • Quick + Easy diff access
  • 2-piece aluminium motor holder with composite gear cover
  • 52T Steel Central gear
  • Complete Hard Coated S2 steel outdrives
  • Extra Surface Hardened Steel front CVD joints
  • Aluminium 17 mm drive hexes
  • Oil-filled threaded 16 mm aluminium Big Bore shocks
  • Shock spring perches locking system
  • Nylon composite shock cap protectors
  • CNC aluminium shock towers, 5mm Front and Rear
  • Independent Pivot Ball front suspension
  • Independent double wishbone rear suspension
  • Optimized, custom developed composite parts
  • Aluminium Pin and Pivot Ball Collars on Suspension Arms
  • Aerodynamic wings on upper front suspension arms
  • HD front steering blocks and rear hubs
  • Extra Thick 8mm Aluminium Suspension Pin Braces
  • Ultimate bulkhead mounting system (8 x M4 screws)
  • Heavy-Duty one-piece composite suspension links and tie rods
  • Team Corally RSP anti-roll bar system, front + rear
  • 3mm Aluminium chassis plate
  • Reinforced chassis side guards with integrated body protection
  • Heavy Duty front and rear chassis braces
  • New Central Chassis reinforcement system with 3mm Aluminium Plates
  • Reinforced High Downforce Wing + Wing Holder with tower connecting brace
  • New Front and rear bumper with integrated skid plates
  • Pre-glued high-speed XL Buggy Tires on black 6-spoke nylon rims
  • Sturdy, elaborately printed polycarbonate body
  • Composite body mount protectors
  • Wide assortment of tuning parts available for individual customization
