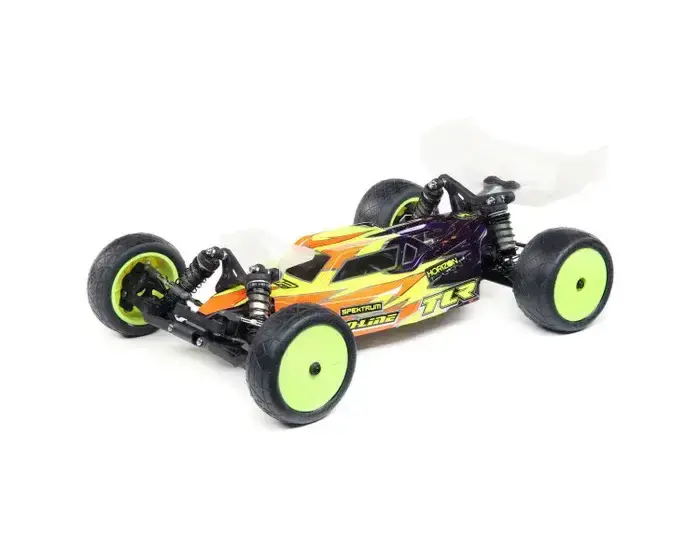

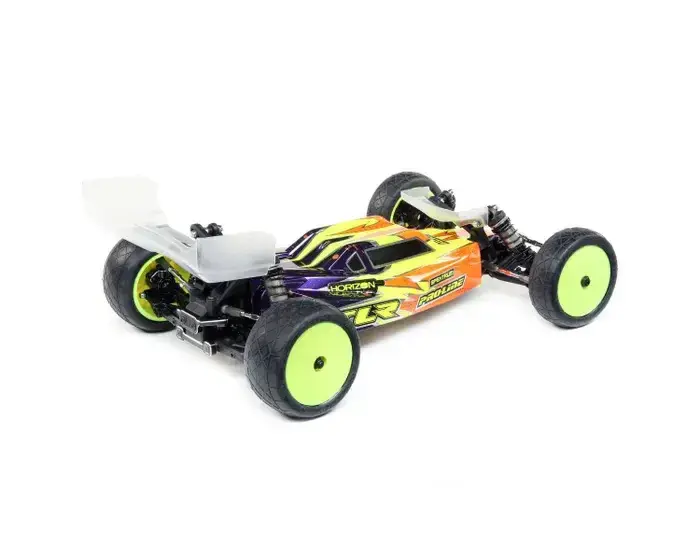

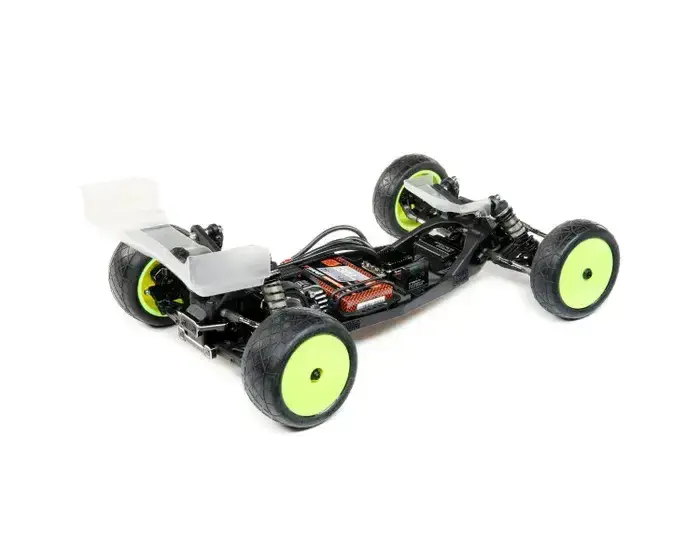

TLR 22 5.0 DC 1/10 Racer Roller Buggy - TLR03012



Product Information

Assembled to our TLR Race Team’s Factory Specifications, the Team Losi Racing® 22 5.0 DC Race Roller: 1/10 2wd Buggy will get any racer off on the right foot and competing for podiums quickly!

Assembled to our TLR Race Team’s Factory Specifications, the Team Losi Racing® 22 5.0 DC Race Roller: 1/10 2wd Buggy will get any racer off on the right foot and competing for podiums quickly! Factory-built and pre-assembled as a Race Roller chassis, new drivers can start racing in less time. Just add your preferred electronics, tires, and paint to make this Race Roller as unique as you. The 22 5.0 DC Race Roller has a combination of features second-to-none including low maintenance gear differential, G3 12mm big bore shocks, revamped steering geometry, and so much more. No matter if the terrain is dirt or clay, the 22 5.0 DC Race Roller is at home on the racetrack and poised for the podium.

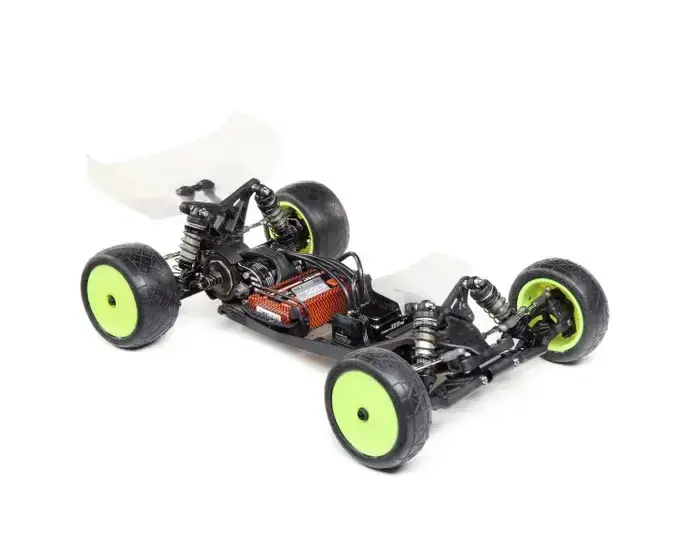

Race Roller

Race Roller

Factory Built as a Race Roller Chassis, just install the electronics, mount preferred tires, paint the body and the 22 5.0 DC Race Roller will be ready to hit the track and collect podium finishes!

Low Maintenance Gear Differential

Low Maintenance Gear Differential

Optimized for reduced maintenance, the 22 5.0 DC Race Roller includes TLR's metal version gear differential which is supremely reliable and uses silicone fluid to tune performance.

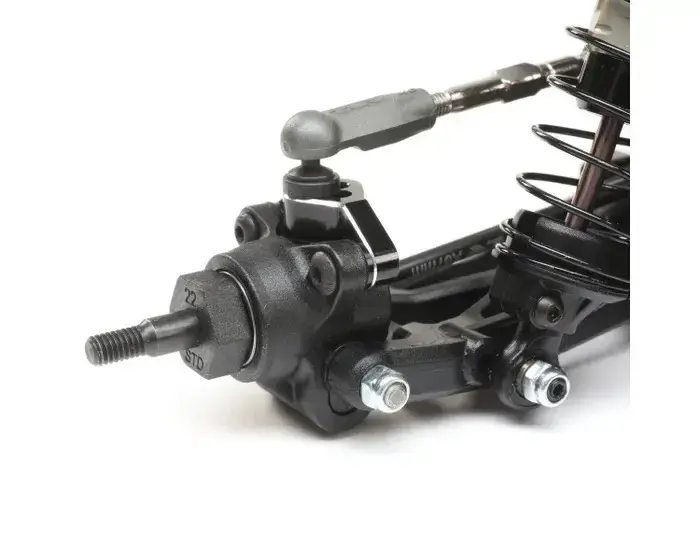

VHA Rear Hubs and Adjustable Inner Rear Pivots

All-New VHA Rear Hubs and Adjustable Inner Rear Pivots

As track surfaces and setups have evolved, the need for more adjustment in the rear suspension has become exceeding apparent. The 22 5.0 DC Race Roller includes Inner Rear Pivots with roll centre, track width, anti-squat and toe adjustment paired with the Variable Height Axle (VHA) rear hubs which also give more roll centre and axle height adjustment. This is the most adjustable rear suspension TLR has ever produced.

Revamped Steering Geometry

Revamped Steering Geometry

The 22 5.0 is the best driving 2wd buggy Team Losi Racing has ever created, and the biggest improvement comes from the steering geometry. Increasing the length of the steering bell cranks and spindle arms, along with changes to the Ackermann angle give the 22 5.0 a significantly smoother steering feel, especially off-centre and high speed, while increase low-speed steering for tighter tracks and 180's.

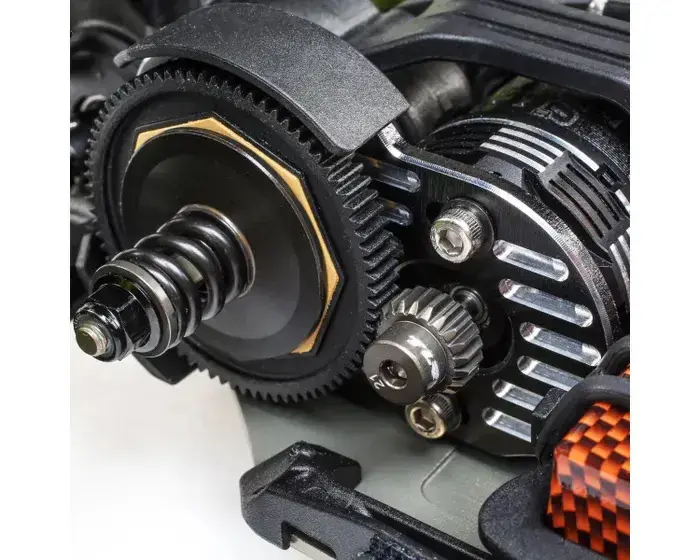

Super Heavy Duty Slipper (SHDS)

Super Heavy Duty Slipper (SHDS)

The slipper is optimized with all new slipper plates, slipper pads, spring, spur gears, and an all-new top shaft. The new top shaft uses a sturdy M4 lock nut, the new slipper pads allow for spur gears sized 69T to 81T, reduced slipper pad area provides a more linear slip through the throttle application, and thicker slipper plate keep consistent pressure across the surface of the slipper pads.

G3 12mm Big Bore Shocks

G3 12mm Big Bore Shocks

The G3 shocks give the 22 5.0 the plush handling and consistent, leak-free bleed as the Gen II shocks, but with some long-anticipated ease of use improvements. No more e-clips as the pistons are now secured by screws, new shock caps and shock bodies increase the spring collar height by 3mm to accommodate lower ride heights, new eyelets and spring cups provide -3mm, 0mm and +4mm spring cup off-sets.

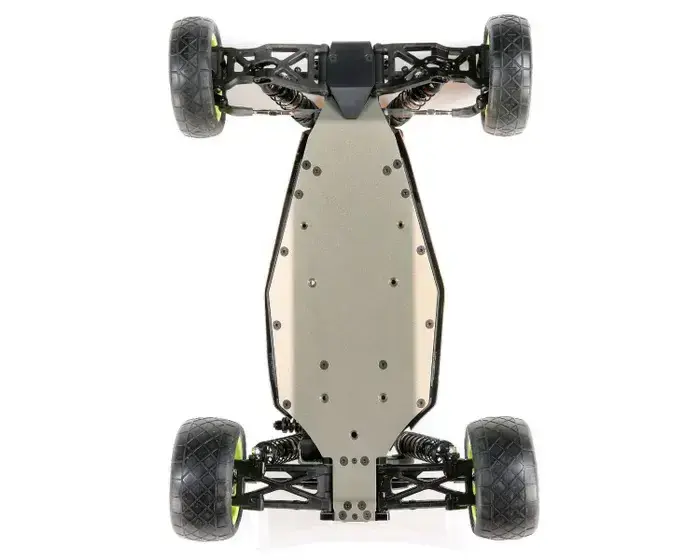

Milled 2.0mm Aluminum Chassis

2.0 Milled Aluminium Chassis

Maximizing the flex characteristics for all surfaces, the 2.0mm thick chassis gives the right about of flex and rigidity for smooth corning, optimized balance, and bounce-free landings.

22 5.0 Body

22 5.0 Body

Maintaining the excellent balance, grip, and stability of the 22 4.0 body, with similar styling, the 22 5.0 body is pulled from 0.8mm polycarbonate plate for a lightweight body that still has fantastic durability. As with all TLR bodies, the 5.0 body is precut and also clear with the Race Roller, ready for the choice of paint.

TLR High Front Wing Included

TLR Front Wing Included

With the higher speed, higher grip tracks of today, a front wing will increase steering in high speed turns and on power, while making the steering on entry smoother - the best of all worlds.

Diff Height Adjustment

Diff Height Adjustment

The 22 4.0 included diff height adjustments including 0 and +3.5mm settings. The 22 5.0 DC includes 0mm, +1mm, +1.75mm, +2.5mm, and +3.5mm diff heights to optimize bone plunge for different axle heights, ride heights, and grip levels.

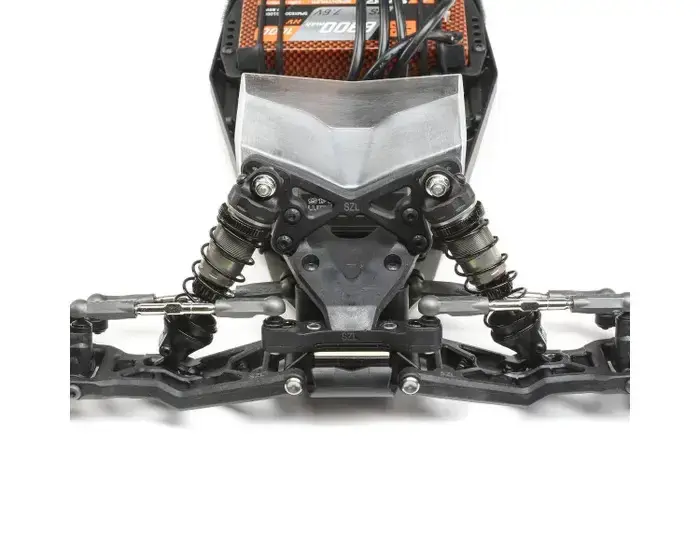

Front Roll Center Adjustment

Front Roll Centre Adjustment

The 22 5.0 includes the standard Low Roll Center (LRC) composite from pivot with both 2mm and 1mm thick front kick shims which allows for incremental adjustments. With the addition of the optional HRC front pivot, racers can run the Super Low Roll Center, Low Roll Center, Medium Roll Center, or High Roll Center, with a 3mm adjustment window.

Updated Front Camber Block

Updated Front Camber Block

The new front camber block adds a 3rd camberlink option between the tradition inside and outside holes. The new position provides the best balance of steering and stability in many conditions and allows the 22 5.0 to be more dialled-in on more different grip levels.


Updated Battery Hold Down

Updated Battery Hold Down

The 22 5.0 boasts the most versatile and easiest to use battery hold-down system. The battery cradles key into the mudguards for five fixed, and easy to duplicate, battery positions. The battery is then held down with elastomer straps on each end that can stretch to fit any height shorty battery and any weight plates under it. Best of all, the battery is out in no time flat and back in just as easily.

Optimized Composites

Optimized Composites

The balance and consistency of the 22 5.0 can be tuned using different composite materials in key parts throughout the vehicle. The kit included the parts the race team prefers: Stiffezel front suspension arms, standard rear suspension arms, soft mudguards, and Stiffezel
waterfall.

Ballast Tuning Options

Ballast Tuning Options

Optional brass ballast weighs can be mounted under the servo, under the battery, and under the laydown transmission idler. This makes it easy to tune the static weight and weight bias for changing track conditions. When running a higher static weight, the chassis will become more neutral and easier to drive on ultra-high-grip surfaces.

TLR 6.5

TLR 6.5" Rear Wing

Pulled from ultra-durable 1.2mm polycarbonate, the TLR 6.5" rear wing isn't new for the 5.0. Instead, this wing has proven itself as the longest lasting and most stable rear wing available for 1/10 2wd buggies over the past few years - and it comes in the kit.

Built-In Motor Fan Mount

Built-In Motor Fan Mount

The prevalence of spec racing has led to the need for many racers to run motor fans to keep temperatures lower. Rather than an aluminium mount, or double-sided tape, the 22 5.0 includes a moulded fan mount secured to the mud guard for easy and dependable fan mounting.

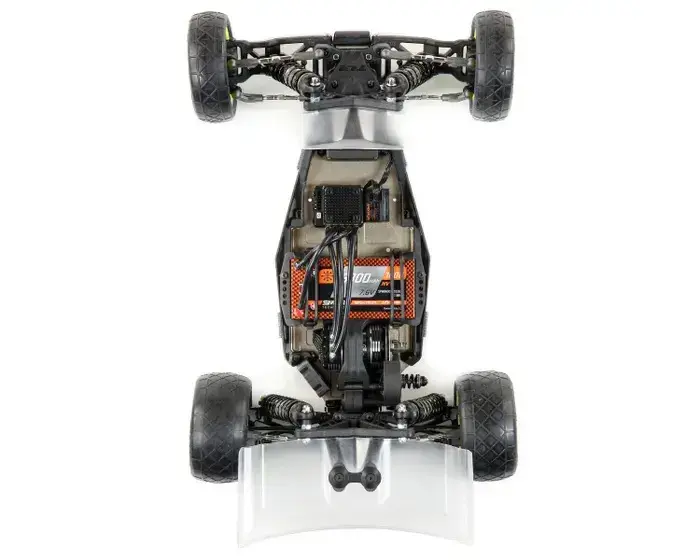

Laydown Configuration

Laydown Configuration

The laydown 3-gear transmission moves the motor forward by 20mm+ to a more centralized location. The benefit is a chassis that drives much flatter and carries more corner speed.

All Metric Hardware

All Metric Hardware

Using all metric hardware make it easy to find replacement screws, nuts and washers, and helps to limit the number to tools required in the toolbox.



What You Need

  • Radio System
  • Motor
  • Electronic Speed Control
  • Servos
  • LiPo Battery
  • Charger



Features

  • Pre-Assembled Race Roller
  • Low Maintenance Gear Differential
  • Adjustable Rear Hubs and Inner Rear Pivots
  • G3 12mm Big Bore Shocks
  • Revamped Steering Geometry
  • Super Heavy Duty Slipper (SHDS)
  • 2.0 Milled Aluminum Chassis
  • 22 5.0 Body
  • TLR Front Wing Included
  • Diff Height Adjustment
  • Front Roll Center Adjustment
  • 3-position Front Camber Block
  • New Battery Hold Down
  • Optimized Composites
  • TLR 6.5" Rear Wing
  • Built-In Motor Fan Mount
  • Laydown Configuration
  • All Metric Hardware



Product Specifications

  • Completion Level: Race Roller
  • Scale: 1/10
  • Length: 15.0 in (382mm)
  • Width: 9.8 in (250mm)
  • Height: 5.8 in (148mm)
  • Wheelbase: 11.0 in(280mm)
  • Track: 9.8 in (250mm)
  • Front Track: 9.8 in (248.5mm)
  • Rear Track: 9.8 in (250mm)
  • Chassis: 2mm Milled Plate, 7075-T6 Aluminum
  • Suspension: Lower A-Arm, Upper Adjustable Link
  • Shock Type: 12mm Big Bore, Oil Filled
  • Drivetrain: 2WD
  • Differential: Oil Filled, Bevel Gear
  • Wheel Type: 22 Dish, 12mm Hex, Yellow
  • Wheel Diameter: 2.2 in (56mm)
  • Spur Gear: 78T, 72T
  • Gear Pitch: 48-pitch
  • Internal Gear Ratio: 2.43:1
  • Speed Control Included: No
  • Servos Included: No
  • Brakes: Controlled via Motor/ESC
  • Body: 22 5.0 Cab Forward, 0.8mm LW
  • Ball Bearings: Full Rubber Sealed
  • Experience Level: Intermediate
  • Recommended Environment: Closed Course Competition
  • Is Assembly Required: Yes
  • Approx. Assembly Time: 1-3 Hours
