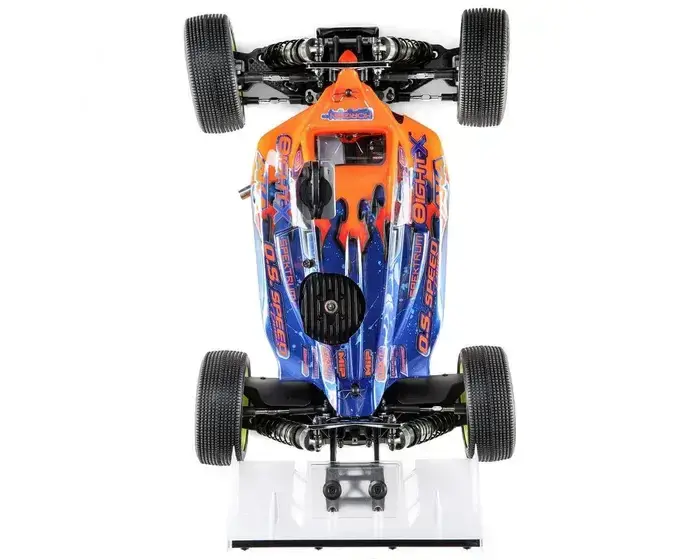

TLR 8ight-X Elite 1/8 Competition Buggy Kit - TLR04010



Product Information

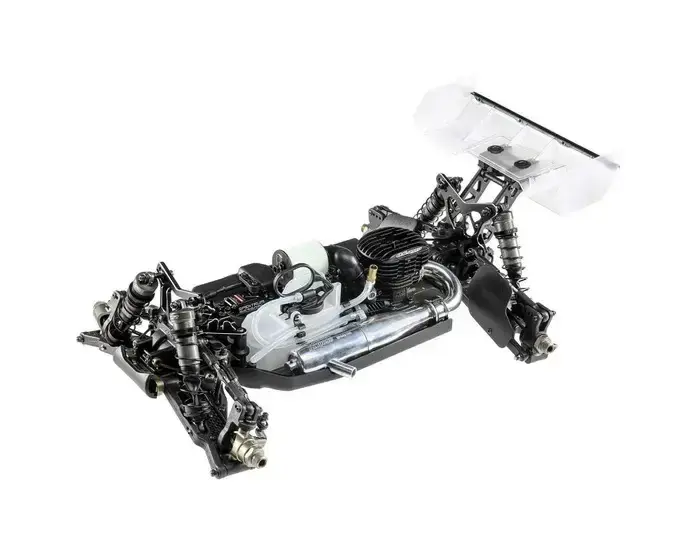

The Team Losi Racing® 8IGHT-X™ ELITE buggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat.

The Team Losi Racing® 8IGHT-X™ ELITE buggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat. This version of the popular 8IGHT-X™ is what avid racers and team members are looking for in a winning buggy. It includes all of the desired factory team option parts and many updates in a one-box purchase. The drivetrain, as well as the chassis layout, have been completely redesigned making it easier to drive on the track and work on in the pit. Additionally, the new ELITE chassis increases stability and is designed to work for all drivers and be more accepted worldwide. Team Losi Racing continues to push the envelope of performance with the 8IGHT-X™ ELITE buggy.

Pro-Level Race Ready
The 8IGHT-X ELITE now includes the option parts our elite level race team utilizes to win races around the world, thus making for a vehicle that is high-level competition ready right out of the box. Included option parts are carbon centre diff brace, 3.5mm shock shafts, aluminium front brace, front universals, 10mm wing riser, quick-change engine mount, wider hexes, new pistons, carbon fibre arm inserts, poly-carbonate wing, and updated rear CVA axle.

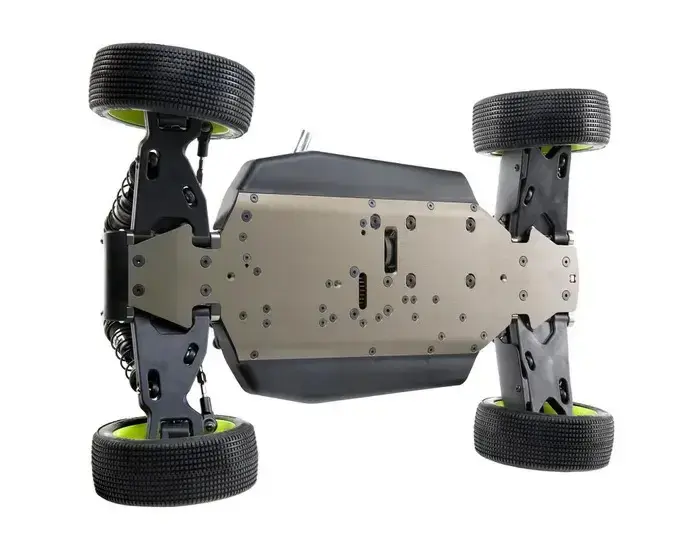

7075 3mm Aluminum Chassis

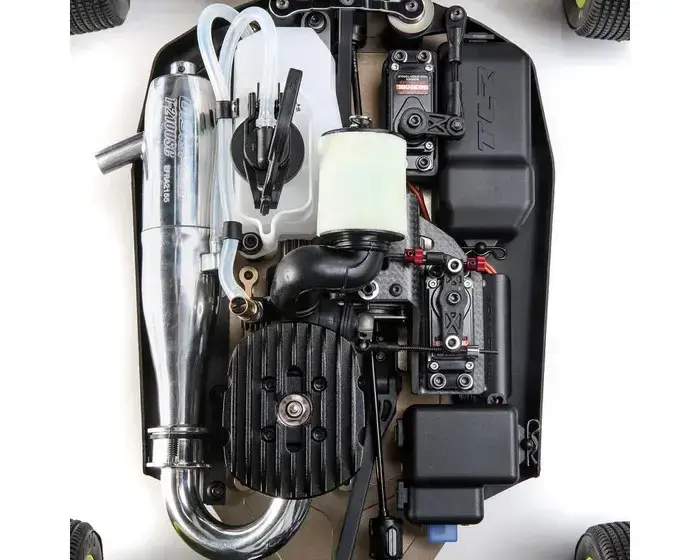

A new ELITE chassis that moves weight forward and decreases wheelbase is included to give the car more overall grip. Chassis width has been increased from the 4.0 to X to aid in stability and give the buggy a more neutral feel.

Updated rear CVAs
The 8IGHT-X ELITE will include rear CVAs with an updated axle and shaft providing more overall rear grip to the car and better tracking through the bumpy conditions.

Front Universals included
The 8IGHT-X ELITE will include updated universals for the front which makes the car smoother existing turns and aids in the flow in bumpy track conditions.

Updated Radio Tray

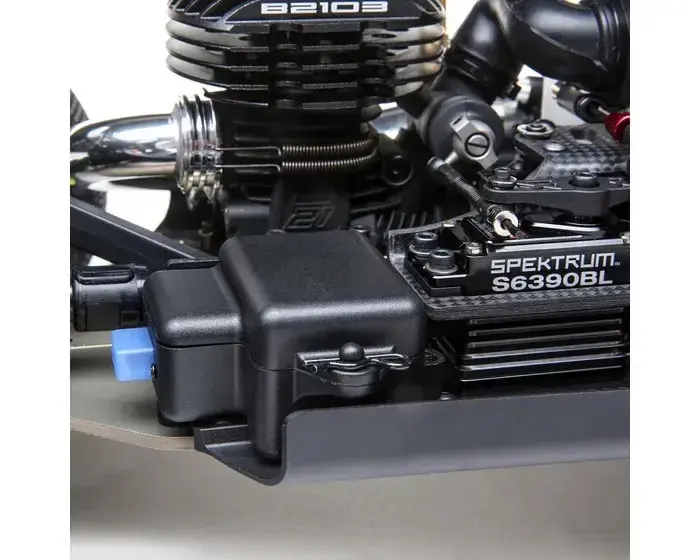

An updated radio tray now puts the throttle servo near the engine to eliminate additional linkage. The updated radio tray will ensure the throttle servo is rigidly mounted to avoid any flex by floating the servo off of the centre differential.

Aluminum Front Brace
The 8IGHT-X ELITE includes an updated aluminium front brace that provides smoother steering response.

+1 Hexes
Updated +1mm width hexes are included for the rear of the 8IGHT-X ELITE to add stability in high-speed turns.

Two Wings and Wing Riser
The 8IGHT-X ELITE includes updates to both the IFMAR wing as well as our polycarbonate wing. We also include a 10mm wing riser for added rear grip.

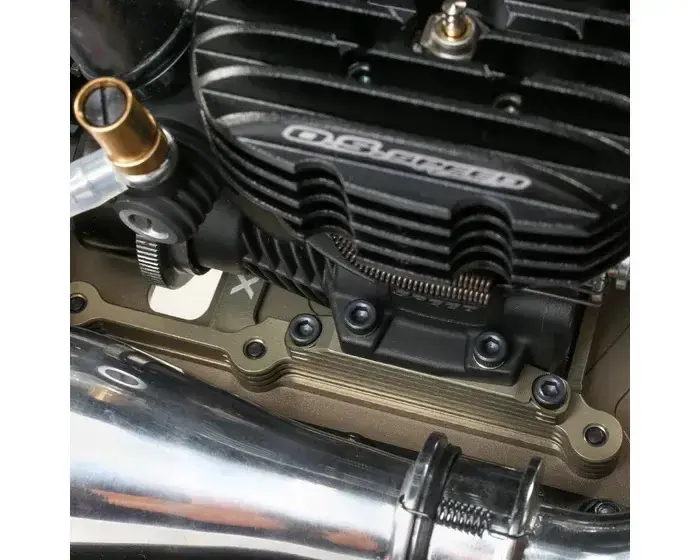

One-Piece Quick Change Engine Mount
The 8IGHT-X ELITE includes our option quick-change one-piece version of the engine mount for easier maintenance.

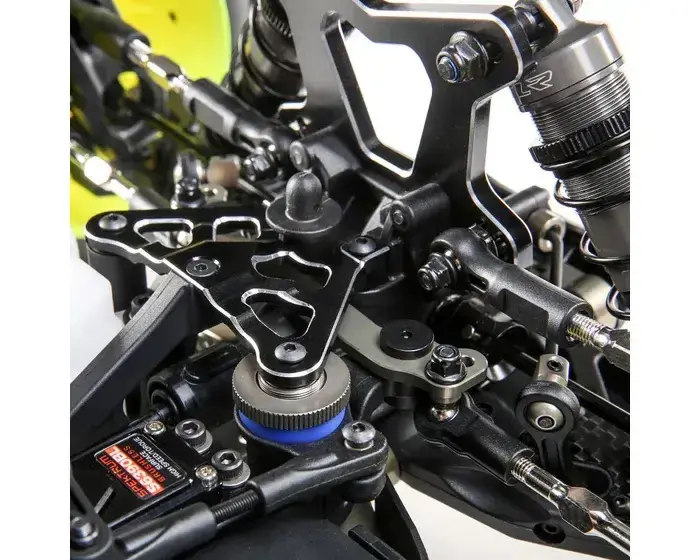

Steering Rack
The steering rack allows more Ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads

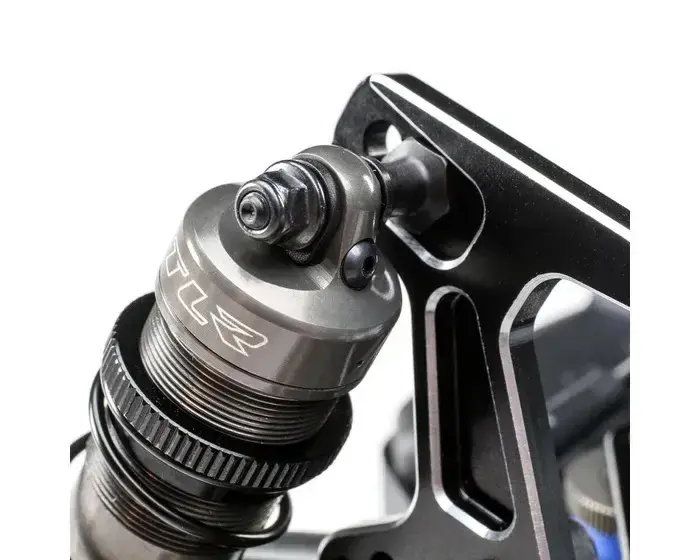

Bleeder Shock Caps
Updated machined aluminium shock caps with threaded bleeder holes for easy and consistent bleeding of oil. New bladders are also included for better bump handling.

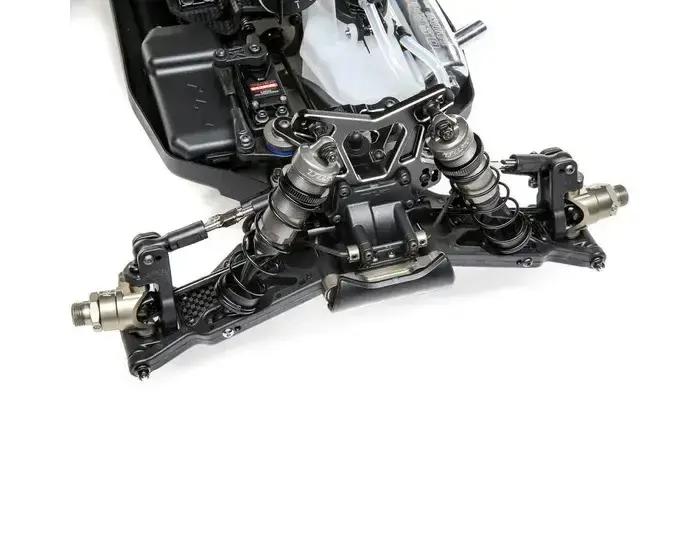

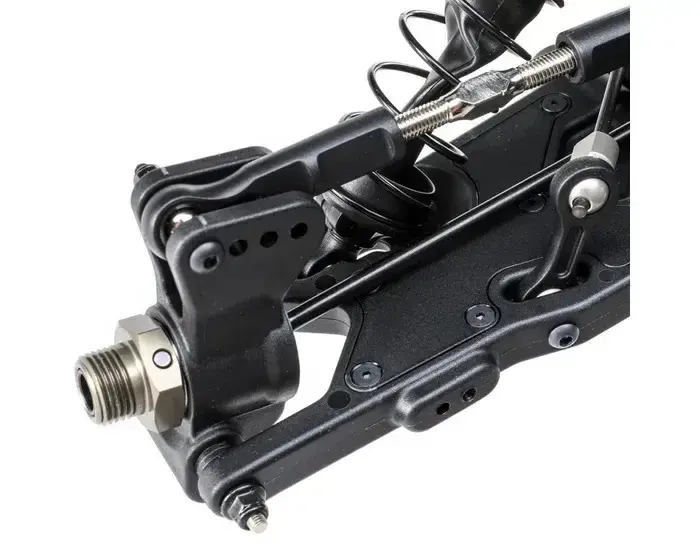

Suspension Arms
Webbing added between inner mounting tabs to ensure hinge pin fitment. Mould updated to increase strength. Suspension arms have been designed to accept stiffener plates that will allow racers to tune the flex of the suspension. The Elite kit will include both moulded plates and carbon plates.

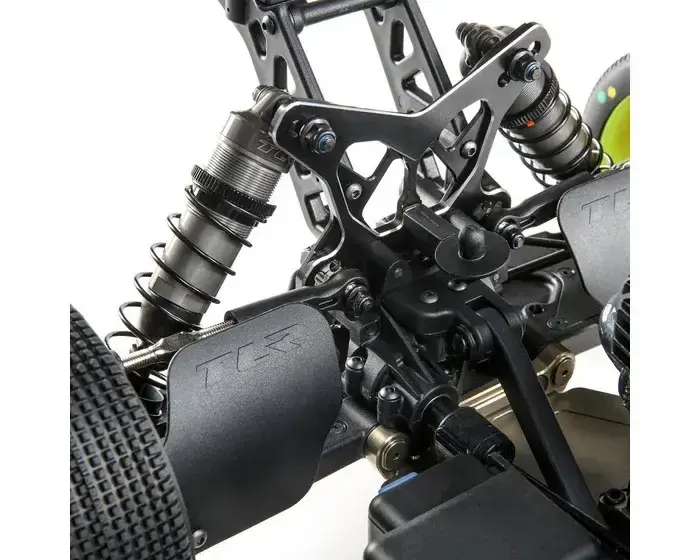

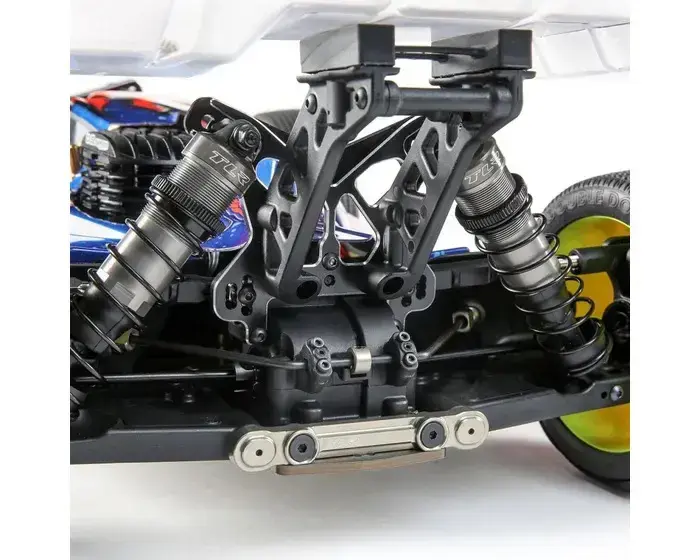

Shock Towers
Machined 7075-T6 aluminium shock towers with updated camber link holes previously included with the 8XE.

Better Diff Access
The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle. The front diff case has been updated to allow better fitment of the front arms while the rear case has been updated to increase the strength of the area holding the shock tower.

Optimized Shocks
The 8IGHT-X shocks are optimized and lightened to decrease the centre of gravity and lower the weight of the car as well as offer the use of both 3.5mm and 4.0mm shock shafts

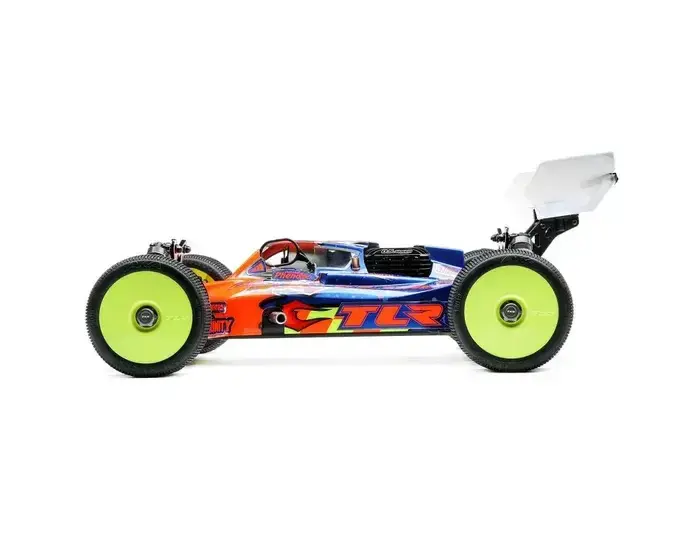

Cab Forward Style Body
A cab-forward design helps with overall downforce, which improves steering and overall stability. Cut lines have been updated for ease of installation and changing of settings.

Equalized driveline
The centre driveshaft angles have been modified so they are equal front to rear allowing for a more 4wd feel to the vehicle

Improved Suspension Geometry
The 8IGHT-X next-generation suspension geometry has been completely revamped making a car that is fast, nimble, and easy to drive. This includes a myriad of updates including longer front and rear arms, wider front pivot with less scrub radius, narrower rear pivot, and updated hub offset.

Larger Pinion Bearing
The pinion bearing size inside the front and rear gearboxes has been increased for added durability

Adjustable Castor Blocks
17.5 deg castor blocks are included that allow the height of the spindle to be adjusted up and down for more or less high-speed stability.

Sway Bar System
Sway bar system that has collars that eliminate side to side play to provide a more consistent suspension package.

Chassis Side Guards
The chassis side guards have an improved fit onto the chassis.



What You Need

  • 6-Channel Radio System
  • 1/8 Scale Brushless High Speed/Torque, HV Digital Servo
  • 7.4V 3200MAh LiPo battery
  • Compatible charger
  • Fuel and fuel bottle
  • Shock Shaft Pliers/Multi-Tool
  • Dynamite® Nitro Engine Heater 12V DC



Features

  • Pro Level Race Ready
  • 7075 3mm Aluminium Chassis
  • Updated rear CVAs
  • Front Universals included
  • Updated Radio Tray
  • Aluminium Front Brace
  • +1 Hexes
  • Two Wings and Wing Riser
  • One Piece Quick Change Engine Mount
  • Steering Rack
  • Bleeder Shock Caps
  • Suspension Arms
  • Shock Towers
  • Better Diff Access
  • Optimized Shocks
  • Cab Forward Style Body
  • Equalized driveline
  • Improved Suspension Geometry
  • Larger Pinion Bearing
  • Adjustable Castor Blocks
  • Sway Bar System
  • Chassis Side Guards



Product Specifications

  • Type: 1/8 Nitro 4WD Buggy
  • Completion Level: Kit
  • Scale: 1/8
  • Length: 19.4 in (494mm)
  • Width: 12.1 in (308mm)
  • Height: 7.1 in (180mm)
  • Weight: Varies on equipment used
  • Ground Clearance: 2.4 in (60mm)
  • Wheelbase: 12.8 in - 13 in (326mm-329mm)
  • Track: 12.1 in (308mm)
  • Front Track: 12.1 in (308mm)
  • Rear Track: 12.1 in (306.5mm)
  • Chassis: 3mm, 7075 T-6 Aluminum, Hard Anodized
  • Suspension: Independent
  • Shock Type: Aluminum Oil Filled
  • Drivetrain: 4WD
  • Differential: Sealed viscous filled gear differential
  • Wheel Type: Dish
  • Wheel Diameter: 3.3" (83.5mm)
  • Wheel Width: 1.7" (42mm)
  • Engine Size: Engine not included-Design fits .21-.31 size engine
  • Pinion: 15T
  • Spur Gear: 48T
  • Gear Pitch: MOD1Internal
  • Gear Ratio: 3.23:1
  • Final Drive Ratio: 11.9:1
  • Brakes: Semi-Metallic Pad with Steel Disc
  • Body: 8XE Unpainted
  • Ball Bearings: Yes
  • Fuel Tank Capacity: 125CC (4.2oz)
  • Experience Level: Advanced
  • Recommended Environment: Closed Course Competition
  • Is Assembly Required: Yes
  • Approx Assembly Time: 3-5 Hours
