Traxxas 1/10 Slash VXL 2WD Brushless Short Course Truck Red

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon brushless power provides screaming 60+mph† speed while the advanced TQi radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

100% Fully Assembled and Ready-To-Race

Slash VXL rolls out of the box Ready-To-Race with the advanced TQi 2.4GHz 2-channel radio system and powerful Velineon Brushless Power System. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun.



Features

  • Traxxas Stability Management (TSM)
  • The Slash VXL reaches speeds in excess of 60+mph
  • Powered by the Velineon Brushless Power System
  • Velineon VXL-3s Electronic Speed Control
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patented)
  • Velineon 3500 Brushless Motor
  • Consistent, high-power output, run after run
  • Low-maintenance design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • TQi 2.4GHz transmitter
  • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security, integrated telemetry ports and TSM
  • Race in dirt, mud, water, and snow thanks to Traxxas’ innovative waterproof electronics
  • Digital high-torque waterproof steering servo
  • 125 oz-in of torque and 0.16-second speed
  • O-ring sealed watertight receiver box
  • Speed control, receiver, and steering servo are securely fastened to chassis

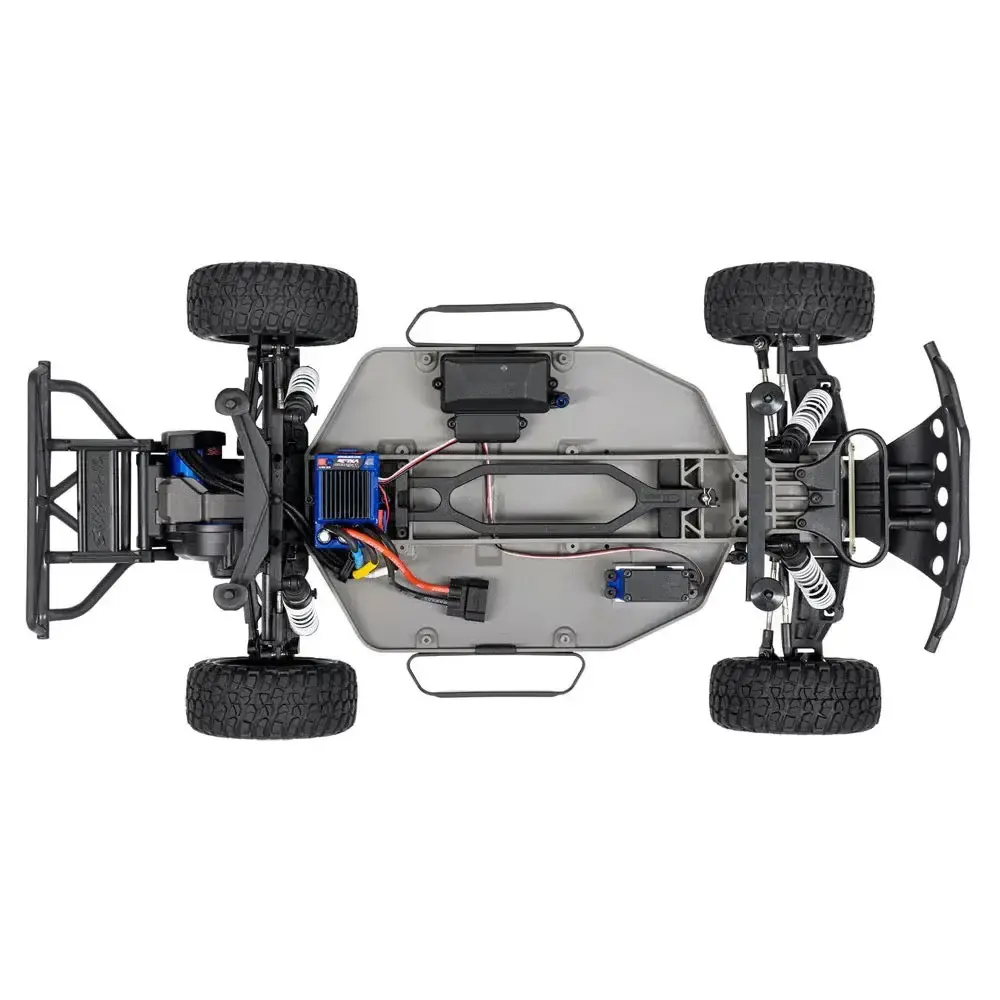

  • Long-wheelbase fiber-composite chassis
  • 13.2 inch wheelbase
  • Easy access battery compartment
  • Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
  • Body mounts incorporate reinforced washers for additional body support
  • High Performance Magnum 272R transmission
  • All-metal internal gears
  • Sealed beveled-gear differential
  • 3.2 mm aluminum motor plate
  • Low-profile case
  • Sealed gearbox protects the transmission with beefed up motor guard for extra protection
  • Torque-Control slipper clutch system
  • External gear cover with easy slipper access
  • Heavy-duty telescoping U-joint driveshafts and yokes
  • Heavy-duty 4 mm steel turnbuckles and captured rod ends
  • Captured rod ends won't pop off for superior durability
  • Precision hex hardware throughout
  • Efficient rubber-sealed ball bearings
  • Fully adjustable Ultra Shocks with X-ring technology
  • Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
  • Dual-bellcrank steering with integrated servo saver
  • ProGraphix multi-colored painted body are available in officially licensed (paint and graphics) race replica versions



What You Need (Not Included)

  • NiMH or LiPo Battery
  • NiMH or LiPo Charger
  • 4 "AA" batteries (transmitter)



Product Specifications

  • Length : 22.4 inches (568 mm)
  • Front Track : 11.65 inches (296 mm)
  • Rear Track : 11.65 inches (296 mm)
  • Weight : 90.4 ounces (2.56 kg)
  • Height (overall) : 8.43 inches (214 mm)
  • Wheelbase : 13.2 inches (335 mm)
  • Front Shock Length : Long
  • Rear Shock Length : XXLong
  • Front Tires : Slash 2.2 (Pre-Glued with Inserts)
  • Rear Tires : Slash 2.2 (Pre-Glued with Inserts)
  • Front Wheels : 2.2" Satin or Chrome-Finish
  • Rear Wheels : 2.2" Satin or Chrome-Finish
  • Speed Control Type : VXL-3s‚Ñ¢ Electronic Speed Control
  • Motor (electric) : Velineon¬Æ 3500 Brushless
  • Gear Ratio (internal) : 2.72 (final drive: 10.2)
  • Differential Type : Steel Composite Planetary
  • Gear Pitch : 48-Pitch
  • Transmission : Metal Gear Magnum 272‚Ñ¢
  • Steering : Bellcrank
  • Chassis Type : Long-wheelbase fiber-composite chassis
  • Chassis Material : Composite Nylon
  • Center Ground Clearance : 3.5 inches (89 mm)
  • Top Speed : 60+mph*
  • Skill Level : 1
  • Radio System (transmitter) : TQi‚Ñ¢ 2.4GHz (2-channel)
  • Radio System (receiver) : Traxxas Stability Management¬Æ (#6533)
  • Officially-Licensed Race Replicas : Traxxas, Race Edition (Traxxas Blue)
  • Traxxas, Race Edition (Traxxas Red)
  • **Battery Tray Dimensions : 165 mm x 49.5 mm x 23 mm, 25 mm
  • Required : NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter)
